In precision manufacturing and quality control, small measurement errors can lead to significant consequences. A deviation of just a few microns may result in rejected parts, rework, production delays, or even non-compliance during audits. This is why Dial Indicator Calibration plays a critical role in maintaining reliable dimensional measurements across industries.
Dial indicators, also known as dial gauges, are widely used in machining, inspection, and assembly processes. However, without proper calibration, even a well-maintained dial indicator can silently drift out of tolerance. This article provides a comprehensive overview of dial indicator calibration, covering technical principles, best practices, common pitfalls, and how professional calibration services such as Techmaster help organizations maintain accuracy and compliance.

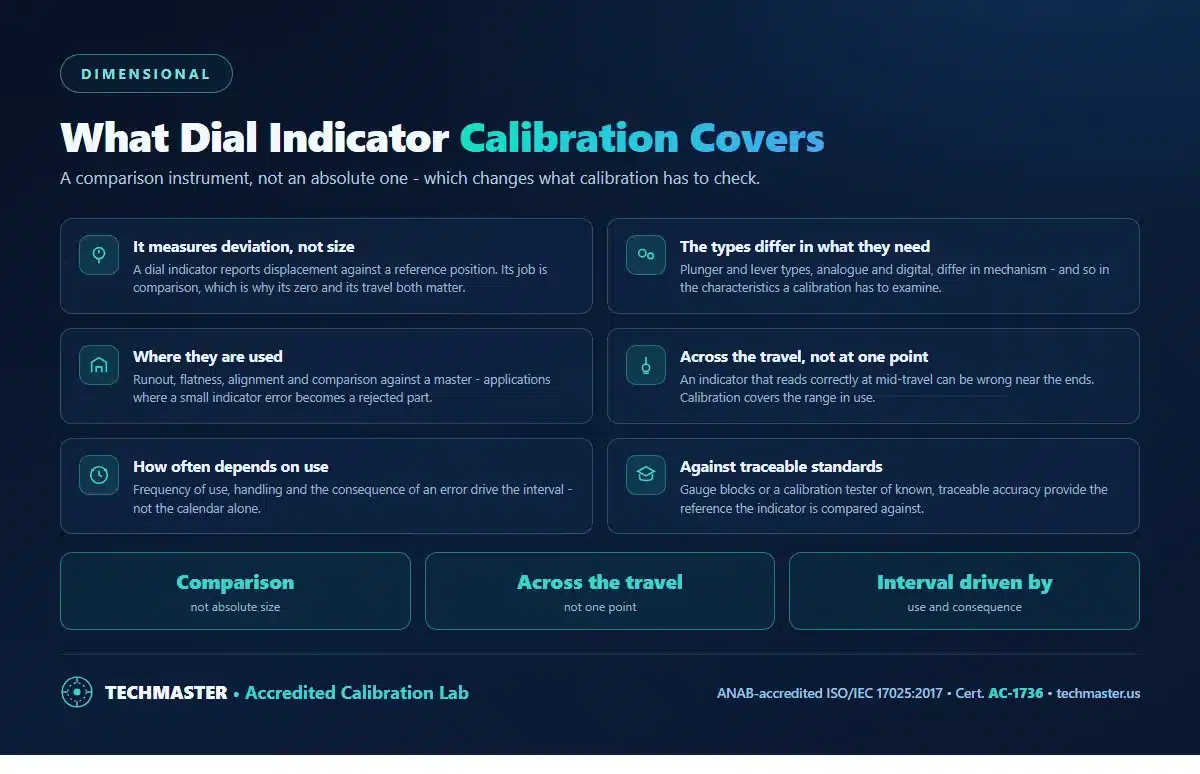

What Is a Dial Indicator?
A dial indicator is a mechanical or digital measuring instrument designed to detect small linear displacements. It converts minute movements into readable values on a dial or digital display, making it essential for precision alignment and dimensional checks.
Types of Dial Indicators
-
Analog Dial Indicator
Traditional mechanical indicators using gears and springs. Commonly used for runout and alignment checks. -
Digital Dial Indicator
Offers electronic readouts, easier data capture, and reduced reading errors. -
Dial Test Indicator (DTI)
Designed for very small displacements, often used in tight spaces or for surface alignment.
Each type has different resolution, accuracy, and application requirements, which directly influence calibration methods and tolerance limits.
Applications of Dial Indicators in Industry
Dial indicators are widely used in:
-
CNC machine setup and alignment
-
Runout, flatness, and parallelism checks
-
Dimensional inspection in quality control
-
Tooling and fixture verification
Because these measurements often affect downstream processes, inaccurate dial indicators can compromise entire production batches.
Many machine shops in the US view calibration as a “necessary evil” or a paperwork hurdle. However, the data tells a different story. Ignoring calibration doesn’t save money; it transfers the cost to scrapped parts and rework.
The visible cost of a calibration service (approx. $30-$50 per gage) is minuscule compared to the hidden costs of using an inaccurate tool. A single batch of scrapped precision parts due to a 0.002″ error can cost thousands.
Regulatory Compliance: ISO 9001 requires traceable verification.
Traceability: Links your measurements to NIST standards.
Confidence: Know that your 0.001″ reading is actually 0.001″.
Source: Industry Aggregated Quality Cost Data
When and How Often Should Dial Indicators Be Calibrated?
There is no single calibration interval suitable for all applications. Calibration frequency depends on several factors:
-
Frequency of use
-
Exposure to shock, vibration, or drops
-
Environmental conditions such as temperature and humidity
-
Manufacturer recommendations
-
Internal quality system requirements
In many quality systems, dial indicator calibration is performed every 6 to 12 months. However, high-usage or critical indicators may require more frequent calibration. Immediate recalibration is recommended if an indicator is dropped or shows inconsistent readings.
Mechanical dial indicators contain gears, springs, and rack-and-pinion mechanisms. Over time, wear and tear cause the readings to drift. Without regular checks, you won’t know when your tool has crossed the tolerance threshold.
Standard recommended calibration interval for moderate use.
Ref: ASME B89.1.10M is the primary US standard for dial indicators.
Standard reference temperature (68°F) for all dimensional metrology.
The red line indicates a tool that drifts out of the allowable tolerance zone (+/- 0.001″) around month 8 without intervention.
A proper calibration isn’t just checking zero. It involves a rigorous set of checks to ensure linearity, repeatability, and hysteresis are all within spec.
Technicians inspect the crystal, bezel, stem, and contact point for damage or stickiness. The unit is cleaned to ensure free movement.
The indicator is mounted rigidly on a comparator stand. It is thermally acclimated to 68°F (20°C). The dial is zeroed against a reference surface.
Using Grade 0 or AS-1 Gage Blocks (Master Standards), the spindle is displaced at specific intervals (e.g., 25%, 50%, 75%, 100% of range).
Hysteresis: Checking the difference when approaching a point from bottom-up vs. top-down.
Repeatability: Measuring the same gage block multiple times to ensure the same reading.
If errors are within the ASME B89.1.10M limits, a certificate is issued detailing the deviations and traceability to NIST.
Reference Standards and Traceability
One of the most critical aspects of Dial Indicator Calibration is traceability. Calibration results must be traceable to recognized national or international standards to ensure credibility.
Traceability ensures that:
-
Measurement results are reliable and reproducible
-
Calibration data can withstand audits
-
Quality systems remain compliant with ISO requirements
Professional calibration laboratories maintain a hierarchy of reference standards with known uncertainties that are significantly smaller than the device under test.
Environmental Conditions Affecting Calibration Accuracy
Environmental factors have a direct impact on dimensional measurements. Common influences include:
-
Temperature: Thermal expansion can alter both the indicator and reference standards
-
Humidity: Excess moisture may affect mechanical components
-
Vibration: Can introduce unstable readings during calibration
-
Surface stability: Uneven or unstable surfaces reduce measurement reliability
Proper calibration is performed under controlled laboratory conditions to minimize these influences and ensure consistent results.
Based on calibration lab rejection data.
Note: “Sticking/Friction” is the most common mechanical failure, often caused by oil or coolant ingress.
Max permissible error for a standard 0.001″ graduation indicator.
Standard indicators usually allow for +/- 1 graduation of error over the full range, but precision requirements may be tighter.
Calibration Documentation and Reporting
Accurate documentation is as important as the calibration itself. A professional calibration report typically includes:
-
Identification of the dial indicator
-
Calibration results and measured deviations
-
Environmental conditions during calibration
-
Traceability statements
-
Pass/fail conclusion
Well-maintained calibration records support audits, internal reviews, and long-term quality improvement.
Real-World Impact of Proper Dial Gauge Calibration
In machining environments, properly calibrated dial indicators contribute to:
-
Improved setup accuracy
-
Reduced scrap and rework
-
Consistent dimensional quality
-
Increased confidence in inspection results
Organizations that invest in reliable dial gauge calibration often see measurable improvements in production efficiency and quality consistency.
Techmaster’s Dial Indicator Calibration Capability
Techmaster provides professional Dial Indicator Calibration services designed to support manufacturing, quality control, and inspection environments.
Key capabilities include:
-
Calibration of analog, digital, and test dial indicators
-
Use of traceable reference standards
-
Controlled laboratory calibration conditions
-
Clear and comprehensive calibration reports
-
Support for quality systems and audit readiness
With experienced technicians and standardized procedures, Techmaster helps customers maintain accurate measurements while reducing operational risk.
Why Choose Professional Calibration Services?
While basic checks can be performed in-house, professional calibration services offer several advantages:
-
Higher measurement confidence
-
Independent and traceable results
-
Reduced risk during audits
-
Time savings for internal teams
For critical measurement instruments, professional dial indicator calibration ensures long-term reliability and compliance.
Conclusion
Dial indicators play a vital role in precision measurement, but their accuracy cannot be assumed without proper calibration. Dial Indicator Calibration ensures measurement reliability, traceability, and confidence across machining and inspection processes.
By following best practices, controlling environmental conditions, and working with a professional calibration provider like Techmaster, organizations can safeguard measurement accuracy and support continuous quality improvement.
For reliable dial gauge calibration services, partnering with a trusted calibration laboratory is an essential step toward consistent and compliant measurement systems.
Calibration is the backbone of quality control. Ensure your dial indicators are trustworthy to maintain your reputation for precision.
