Force Gauges: Working Principles, Industrial Applications, and the Critical Process of Calibration

In the fast-paced world of modern manufacturing, quality control serves as a pillar of success rather than a mere option. Today, companies rely heavily on precise measurement instruments to ensure consumer safety and maintain brand reputation. Among these essential tools, the force gauge stands as a silent guardian of product integrity. However, this device only provides true value when experts perform regular force gauge calibration. This comprehensive guide explores every aspect of force gauges, from their internal mechanics to the rigorous standards required to keep them accurate.

1. What is a Force Gauge and Why Does It Matter?

To begin with, we must define what a force gauge actually does. A force gauge is a specialized measuring instrument—either handheld or stationary—that determines the magnitude of tension (pull) or compression (push) applied to an object. Unlike a standard weighing scale that measures static mass, a force gauge captures mechanical reactions in real-time.

Why do industries prioritize this device so highly? The answer lies in the high stakes of manufacturing. For instance, if a seatbelt in a vehicle fails to withstand its rated tension force, the consequences can be fatal. Consequently, owning a precisely calibrated gauge forms the foundation of every reliable Quality Control (QC) department. By using these tools, engineers can verify that every component meets specific safety and durability thresholds.

2. Exploring the “Heart” of the Device: The Working Principle

Understanding the Load Cell

At the core of every digital gauge is a Load Cell. It converts mechanical force into precise electrical signals.

01

Elastic Deformation

The metal body flexes under applied force.

02

Strain Gauge Detection

Micro resistance changes are captured electrically.

03

Digital Conversion

Signals are converted into N or lbf values.

↓

STRAIN GAUGE

INPUT

MECHANICAL

→

OUTPUT

ELECTRICAL

To understand why calibration is necessary, you must first master how the device operates. Most modern digital force gauges utilize a sophisticated core component known as a Load Cell.

The measurement process follows a very specific sequence. First, when a user applies a pulling or pushing force, the metal structure within the Load Cell deforms slightly. Although the human eye cannot perceive this microscopic movement, tiny electrical resistors called strain gauges detect it immediately. Next, these strain gauges change their electrical resistance in direct proportion to the deformation of the metal. Subsequently, the internal circuitry converts this resistance shift into a precise voltage signal. Finally, the central microprocessor analyzes this signal and displays the final value on the LCD screen in units such as Newtons (N), Kilograms (kg), or Pounds (lb).

Because this process relies on physical metal deformation, the metal element can experience “fatigue” or aging over time. Therefore, the device’s readings will eventually drift away from their original accuracy if the user does not seek professional technical intervention.

3. Diverse Applications Across Major Industrial Sectors

Currently, force gauges appear in almost every laboratory and production line worldwide. We can categorize their primary uses into several key sectors:

3.1. The Electrical and Electronics Industry

In this field, engineers frequently use force gauges to test the insertion and withdrawal force of USB connectors, HDMI cables, or the strength of solder joints on a circuit board. Moreover, they measure the actuation force of smartphone buttons to ensure that every consumer experiences the same tactile feedback.

3.2. Packaging and Textiles

In the packaging industry, the force gauge helps determine the “peel strength” of plastic seals or the maximum “top-load” a cardboard box can endure before collapsing. Similarly, textile manufacturers use this tool to test the breaking strength of threads or the attachment force of buttons on garments to prevent choking hazards.

3.3. Automotive and Aerospace Engineering

These industries demand the highest safety standards. Consequently, technicians use force gauges to evaluate the tension of safety cables, the resistance of brake pedals, and the spring rates of suspension systems. In addition, aerospace engineers test the force required to toggle cockpit switches to ensure they do not activate accidentally under high G-forces.

3.4. Medical and Food Industries

Furthermore, the medical sector utilizes force gauges to verify the sharpness of surgical needles or the force required to move a syringe plunger. Meanwhile, the food industry employs them to measure the ripeness of fruit by checking skin firmness or the force needed to pop open a soda can tab.

4. The Vital Importance of Regular Force Gauge Calibration

Many users mistakenly believe that a high-priced instrument will remain accurate forever. On the contrary, force gauge calibration is a vital maintenance requirement for several critical reasons:

• Maintaining Reliability: Over time, electronic components and sensors naturally “drift.” Calibration restores the device to the manufacturer’s original standards.

• Guaranteeing Safety: An uncalibrated gauge might provide a “pass” result for a faulty product. Consequently, this leads to structural failures or accidents in the real world.

• Compliance with International Standards: To maintain ISO 9001 or ISO 17025 certifications, companies must provide documented proof that they calibrate all testing equipment at verified intervals.

• Cost Efficiency: While calibration costs money, it prevents much larger expenses. By detecting errors early, managers avoid the massive costs of product recalls or legal liabilities.

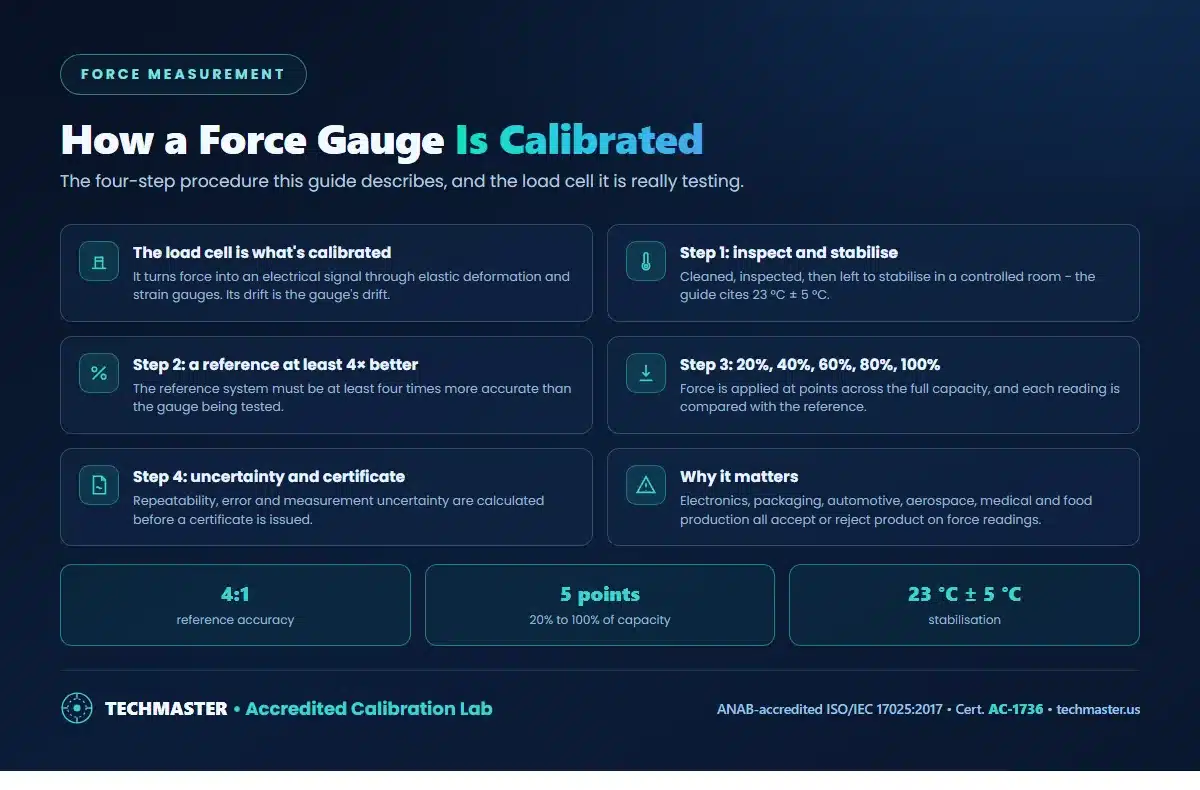

5. The Professional Force Gauge Calibration Process

A professional calibration procedure involves much more than just resetting the screen to zero. Instead, it follows a strict technical protocol performed by specialists in a controlled environment.

Step 1: Inspection and Environmental Stabilization

Initially, the technician cleans the device and inspects it for any physical damage or wear. Afterward, they place the gauge in a laboratory with stable temperature and humidity (typically 23°C ± 5°C) for at least two hours. This allows the internal electronics to reach thermal equilibrium.

Step 2: Setting Up the Reference System

Next, the technician mounts the force gauge on a specialized calibration test stand. This stand ensures that the applied force remains perfectly vertical and free from vibration. Subsequently, the expert uses “Master Standards,” such as certified F1-class weights or a reference load cell that is at least four times more accurate than the device being tested.

Step 3: Conducting the Comparative Measurements

The specialist applies force at several specific intervals, such as 20%, 40%, 60%, 80%, and 100% of the gauge’s full capacity. At each point, they record the value displayed on the gauge and compare it to the actual value of the reference standard. Furthermore, they repeat this cycle multiple times to calculate the device’s repeatability and average error.

Step 4: Data Analysis and Certification

Finally, the expert analyzes the data to determine the “Uncertainty of Measurement.” If the device’s error falls within the manufacturer’s allowable limits, the lab issues a formal Calibration Certificate and applies a calibration sticker. If the error is too large, the technician must adjust or repair the device.

6. Maintenance Tips to Extend Your Gauge’s Lifespan

In addition to formal calibration, your daily handling habits significantly impact the device’s accuracy. Therefore, you should always follow these best practices:

• Avoid Overloading: This is the leading cause of Load Cell failure. Always choose a gauge with a capacity at least 20% higher than your expected maximum force.

• Prevent Mechanical Shock: Load Cells are extremely sensitive to impact. A single drop onto a hard floor can permanently damage the sensor’s alignment.

• Clean the Attachments: Always keep the measuring hooks and plungers free of dust, oil, or debris to ensure clean force transmission.

• Store Correctly: When the device is not in use, keep it in its original padded carrying case and store it in a cool, dry place.

Conclusion

In summary, a force gauge is a powerful tool that helps businesses control product quality and safety. However, users must not overlook the importance of maintaining its precision. Through professional force gauge calibration, you do more than just protect your company’s assets; you build a foundation of trust with your customers. Remember, in the world of industrial measurement, accuracy is the ultimate currency of reputation.
