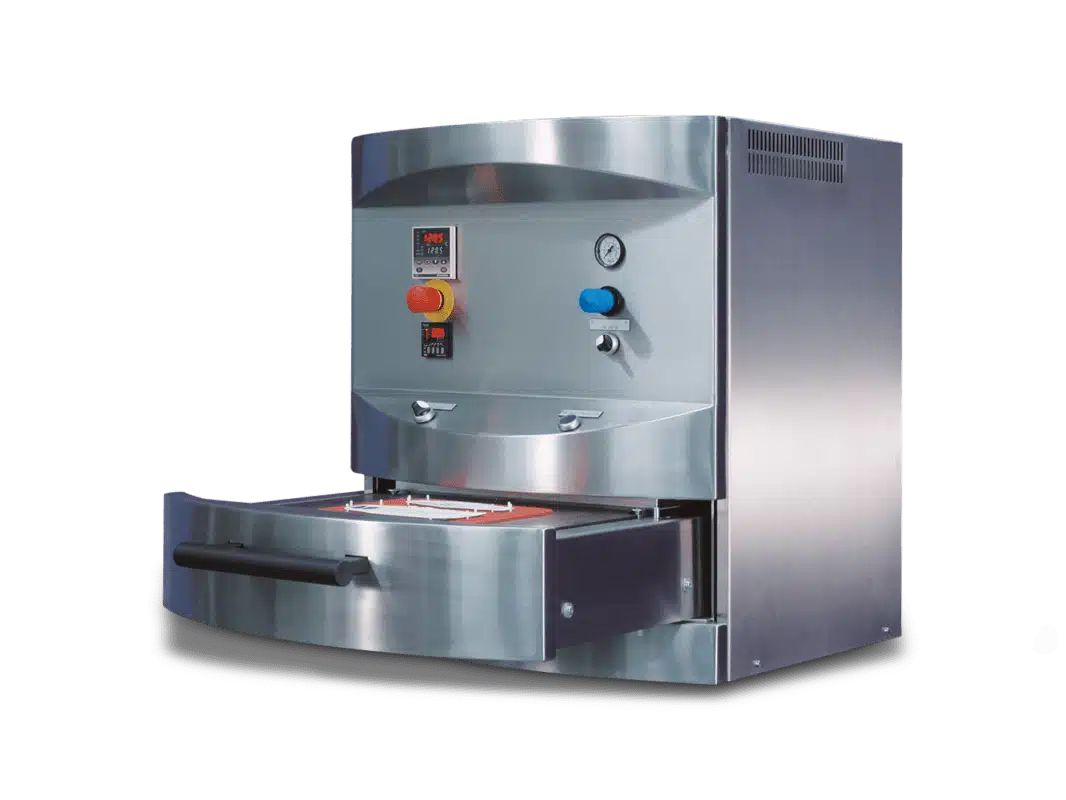

PLC-Controlled Sealing Machines: The Key to Elevated Packaging Quality and Automation – The Vital Role of Calibration
In modern manufacturing, packaging quality transcends mere aesthetics; it forms an integral part of product quality. Poorly sealed packaging often leads to product spoilage, compromised hygiene, leaks, and significant economic losses. PLC-Controlled Sealing Machines offer a high-tech solution to this challenge. They provide precise, reliable, and highly automated sealing capabilities for all types of packaging. Thanks to their Programmable Logic Controller (PLC) system, these machines tightly manage critical parameters such as temperature, time, and pressure, thus ensuring every product receives a perfect seal. However, a PLC-Controlled Sealing Machine’s effectiveness and consistency depend entirely on its sensors’ and control mechanisms’ accuracy. Therefore, Sealing Machine Calibration is a mandatory, periodic step. It ensures that the machine’s measured data and operational parameters remain accurate, which helps maintain product quality, comply with industry standards, and optimize the production process.
1. Diverse Applications of PLC-Controlled Sealing Machines in Modern Manufacturing
PLC-Controlled Sealing Machines handle various types of packaging and materials. Consequently, they meet the stringent demands of multiple industries.
INDUSTRY APPLICATIONS
1. Food & Beverage
Controls vacuum/MAP sealing ensuring 100% airtight seal for shelf life extension.
2. Pharma & Medical
Ensures sterility. Adheres to 21 CFR Part 11 and GMP calibration traceability.
3. Cosmetics & Chemicals
Leak-proof sealing for volatile liquids. Ensures precise packaging pressure control.
4. Electronics & Others
Controls ESD packaging and moisture barrier for sensitive electronic components.
1.1. Food and Beverage Industry
In the food industry, sealing significantly impacts shelf life and hygiene.
- Optimal Preservation: These machines seal snack bags, coffee, sugar, milk, frozen foods, and beverages. This action prevents oxidation, moisture absorption, and microbial ingress, thereby extending product shelf life.
- Leak Prevention: Manufacturers use them to ensure liquid, semi-solid, or granular products do not leak during transport and storage.
- Inert Gas Packaging: Furthermore, for certain products, operators can integrate the sealing machine with a Modified Atmosphere Packaging (MAP) system to enhance preservation.
1.2. Pharmaceutical and Medical Industry
Packaging integrity is a mandatory requirement to ensure sterility and drug efficacy.
- Sterility Maintenance: The machines seal blister packs, powder sachets, syringes, vials, and IV bags, preventing microbial contamination.
- Potency Protection: They ensure active ingredients do not degrade due to exposure to air or moisture.
- Control and Traceability: Moreover, the PLC system can integrate with data management systems to store sealing parameters for each product batch.
1.3. Cosmetics and Chemical Industry
- Quality Preservation: These machines seal cosmetic products (creams, shampoos) and liquid or powdered chemicals. Ultimately, this prevents evaporation, leakage, or degradation from environmental reactions.
- Safe Use: Specifically, for hazardous chemicals, secure sealing minimizes the risk of exposure or environmental leakage.
1.4. Electronics and Other Industrial Sectors
- Component Protection: Operators seal sensitive electronic components in anti-static bags or sealed packaging. This shields them from moisture, dust, and static electricity.
- Parts Packaging: Manufacturers use these machines to ensure small parts and components remain securely packaged, thus preventing loss or damage.
2. Key Advantages of PLC Integration
IMPACT OF SEALING FAILURES IN THE STERILE SUPPLY CHAIN
99.8%
Successful Sterilization (Requirement)
75%
Seal failure due to Temp/Pressure inaccuracy
0%
Traceability without Calibration
PLC: THE QUALITY CONTROL BRAIN
The PLC ensures closed-loop control of sealing variables, maximizing repeatability across every cycle.
KEY ADVANTAGES OF PLC INTEGRATION
PLC control offers competitive advantages in performance, cost, and output quality.
RECIPE FLEXIBILITY
Stores hundreds of sealing recipes for various materials. Enables instant product changeover.
DIAGNOSTICS & PREVENTION
Integrates real-time diagnostics. Provides early warnings before seal failure occurs.
SYSTEM INTEGRATION
Connects to SCADA/MES/ERP for complete traceability and data flow.
- High Precision and Consistency: The PLC precisely controls every millisecond of welding time, every degree Celsius of temperature, and every bar of pressure. As a result, each seal consistently achieves high quality, minimizing errors from human factors.
- Flexibility and Easy Changeovers: Operators can program different sealing recipes for various materials or packaging sizes. Thus, switching between products becomes quick and effortless.
- Comprehensive Automation: In fact, companies can integrate the PLC with conveyors, feeding systems, and robots to form a fully automated packaging line, dramatically increasing productivity.
- Monitoring and Diagnostics: The PLC offers real-time monitoring of machine operating status. Additionally, it can store data and detect faults, making diagnosis and troubleshooting easier for technicians
3. The Critical Role of PLC Sealing Machine Calibration
A PLC-Controlled Sealing Machine performs optimally only if its sensors and controllers consistently remain accurate. Periodic calibration is therefore indispensable.
CALIBRATION: THE THRESHOLD OF ACCURACY
Calibration verifies that the data the PLC receives from the sensors is accurate. All PLC control is meaningless if the input data is flawed.
Temperature Sensor Drift Over Time
Drift of Thermocouple sensor over typical usage period.
Impact of Temperature Error on Seal Strength
Comparing seal strength (force units) between a calibrated machine and one with a -5°C error.
3.1. Ensuring the Accuracy of Sealing Parameters
- Temperature Sensor Calibration: Temperature is a pivotal factor in heat sealing. Calibration ensures that the PLC’s displayed and controlled temperature accurately reflects the actual temperature at the sealing point. Conversely, temperature discrepancies can lead to weak seals (low temperature) or packaging damage (excessive temperature).
- Timer Calibration: The duration of heat/pressure application also proves critical. Calibration ensures the PLC’s timer operates accurately to the millisecond.
- Pressure/Force Sensor Calibration: For instance, for sealing machines requiring applied force, calibration of pressure/force sensors ensures the machine applies the correct force, creating a secure seal without deforming the product.
3.2. Compliance with Quality Standards and Industry Regulations
In many industries, particularly pharmaceutical and food, calibration is a legal and mandatory standard requirement.
- GMP/GDP (Good Manufacturing Practice / Good Distribution Practice): These standards demand that all manufacturing and quality control equipment undergoes periodic calibration and maintenance. Consequently, calibration records serve as crucial evidence during audits.
- ISO Standards: Companies adhering to ISO 9001 or ISO/IEC 17025 (for laboratories) must implement a comprehensive calibration program for all their measurement and process control equipment.
- Preventing Product Recalls: Poor seals can lead to widespread product damage. Therefore, using a calibrated machine minimizes this risk and avoids the enormous costs associated with product recalls.
3.3. Optimizing Performance and Extending Machine Life
- Waste Reduction: When operators precisely control parameters, the rate of packaging defects significantly decreases. This, in turn, saves packaging materials and products.
- Component Longevity: Furthermore, regular calibration offers an opportunity to inspect other components. This helps detect and replace potentially failing parts early, extending the entire machine’s lifespan.
COMPLIANCE STANDARDS (ISO 11607 & GMP)
Calibration is not just best practice; it is a regulatory requirement to ensure sterility and product stability.
Core Parameters
- • Seal Temperature (±2°C)
- • Seal Pressure (±5%)
- • Seal Time (±0.1s)
Traceability Requirements
All calibration equipment must be certified by ISO 17025 accredited labs to ensure standard traceability.
Recommended Frequency
Standard calibration frequency is 12 months. Recalibrate immediately if machine is moved or repeated seal failures occur.
Conclusion
The PLC-Controlled Sealing Machine stands as a strategic asset in manufacturing. It significantly enhances packaging process quality and efficiency. Its ability to precisely control sealing parameters protects products, extends shelf life, and meets stringent market demands.
However, its true value is only fully realized when Sealing Machine Calibration undergoes professional and periodic execution. Ultimately, this represents an indispensable investment in quality, safety, and the sustainability of manufacturing operations.
Ensure that your PLC-Controlled Sealing Machine always remains calibrated on time. After all, in today’s competitive world, a perfect seal marks quality and reliability.
A PLC transforms a conventional sealing machine into a powerful automation system.
