Differential Thermometer Calibration: Guarding Thermal Precision in Process Control

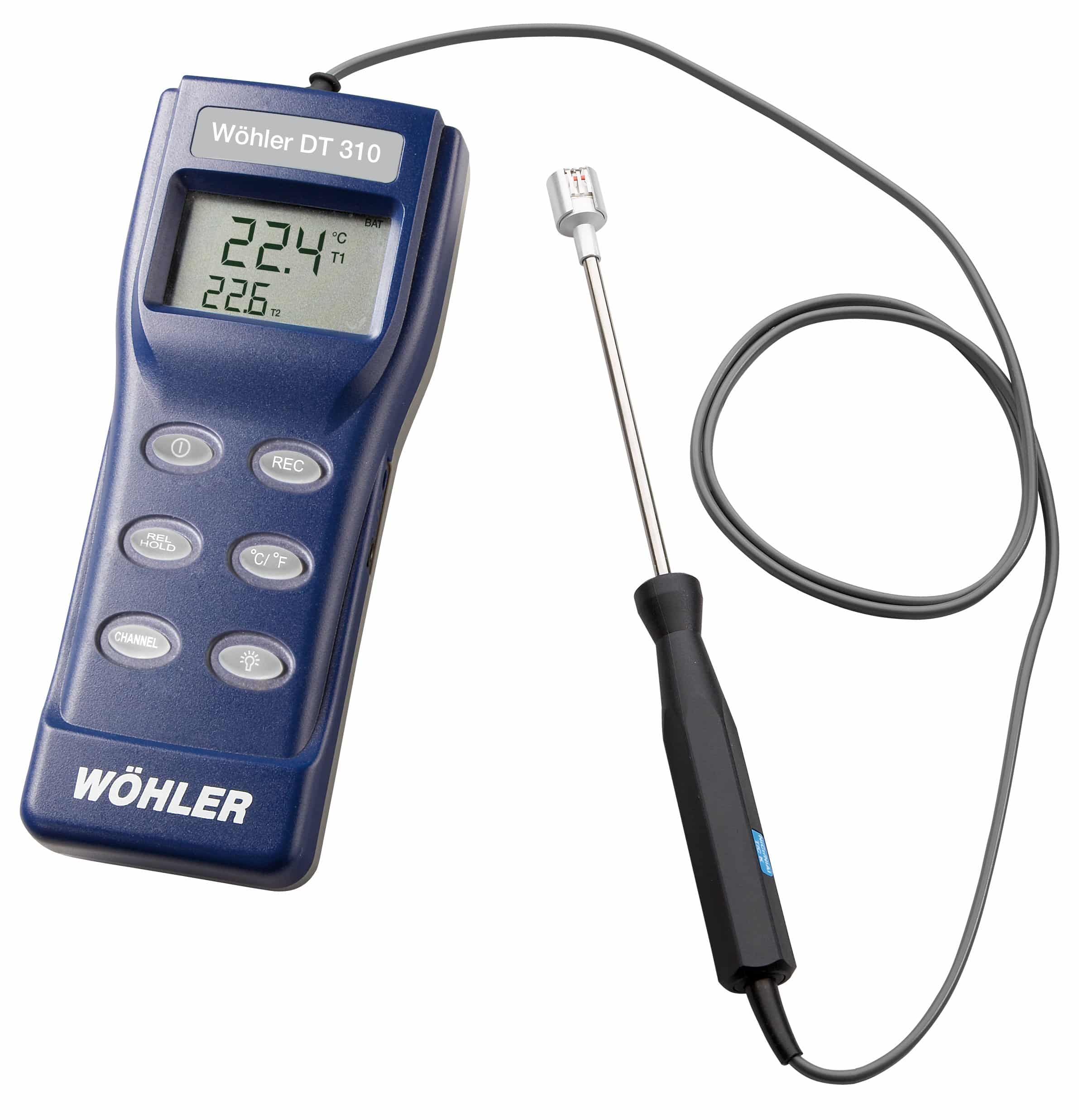

In temperature-critical industries, accurate temperature difference monitoring is essential for safety, energy efficiency, and regulatory compliance. Differential Thermometer Calibration ensures dual-input thermometers deliver precise ΔT measurements for HVAC systems, heat exchangers, cleanrooms, and industrial machinery. Over time, sensor aging, electrical drift, and uneven probe wear can create hidden measurement errors that lead to energy loss, unstable processes, or damaged products. Regular Differential Thermometer Calibration helps maintain accuracy, traceability, and reliable system performance while protecting operational quality and reducing costly risks.
1. Technical Principles: Thermodynamics, Sensor Paired Dynamics, and Drift Mechanics
1.1. What are the fundamental engineering principles affecting delta temperature accuracy?
Differential thermometer calibration is the process of testing and adjusting a dual-input thermal measurement system against a traceable master standard. This metrological intervention corrects for individual sensor drift, cold-junction compensation errors, and mathematical delta calculation variances.
1.2. Cold-Junction Compensation and Electronic Multiplexer Drift
Multi-channel temperature meters rely heavily on the accuracy of their internal Cold-Junction Compensation (CJC) circuits and Analog-to-Digital Converters (ADCs). When using thermocouple inputs, the instrument must precisely measure the ambient temperature at the connection terminals to calculate the absolute temperature at the probe tips.
Over time, environmental temperature swings degrade the internal CJC thermistors, leading to electronic drift in the analog signal path. Furthermore, if the input multiplexer switch shifts unevenly, it introduces minor electrical resistance differences between Channel A and Channel B. This electronic change means the system may compute an inaccurate delta-T, even if both physical probes are exposed to identical thermal conditions. Calibration identifies these electrical offsets and updates internal calibration coefficients to restore absolute measurement balance.
1.3. Mathematical Non-Linearity and Sensor Mismatch Mechanics
Calculating a true differential temperature requires two sensor curves to align perfectly across a wide operating span. Industrial sensors, such as Resistance Temperature Detectors (RTDs) and thermocouples, exhibit non-linear voltage or resistance outputs relative to temperature changes.
If one probe undergoes more severe thermal stress than its paired counterpart, their output curves begin to diverge. This divergence introduces mathematical non-linearity errors that distort delta calculations at high or low temperature extremes. Metrologists resolve this mismatch by testing both channels simultaneously across multiple temperature points inside a highly stable isothermal fluid bath. This comprehensive testing ensures the combined system calculation tracks accurately across your entire operational range.
2. Industrial Applications: Where Delta-T Control Prevents Catastrophic Failures
How does precise multi-channel temperature verification impact real-world manufacturing environments?
Differential temperature verification provides industrial engineering teams with reliable data to maintain safe production margins. Accurate equipment prevents operational errors associated with both over-heating and under-heating in automated processing lines.
-
Pharmaceutical and Biotech Manufacturing: Maintaining a precise temperature differential across cleanroom air handling units is critical for bio-contamination control. If a drifting sensor miscalculates the thermal gradient inside a sterilization loop, entire medicine batches can fail quality testing, causing massive financial losses.
-
HVAC and Commercial Refrigeration Performance: Large facilities optimize chiller plants by measuring the temperature drop between chilled water supply and return lines. Accurate differential data allows building automation systems to adjust flow rates efficiently, preventing excessive electricity consumption and structural component wear.
-
Petrochemical and Refining Systems: Refining columns require continuous delta-T tracking to monitor chemical condensation reactions and fluid heat exchange. Reliable reference tools help maintenance crews keep safety switches running accurately, preventing hazardous thermal runaway conditions.
-
Power Generation and Turbine Efficiency: Heavy steam turbines use complex thermal sensors to monitor bearing friction and cooling water lines. Accurate calibration prevents unexpected sensor failures, reducing plant downtime and preventing expensive mechanical breakdowns.
3. The Calibration Pillar: Securing Traceability and ISO/IEC 17025 Compliance

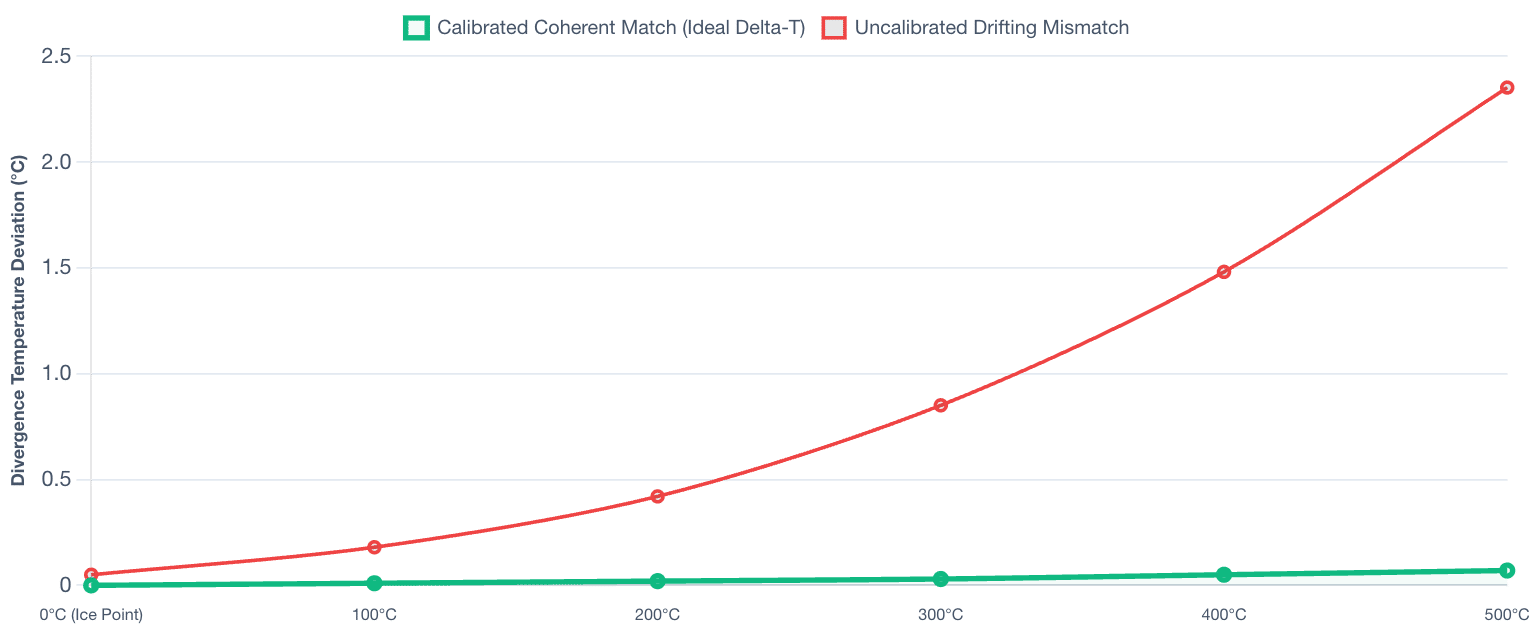

Paired Sensor Mismatch: Calibrated Coherence vs. Drifting Probe
This profile displays the measurement deviation from the true temperature across the operating span of the system.
Why is traceable metrological calibration mandatory for industrial thermal reference tools?
Traceable differential thermometer calibration links factory floor measurements directly to national standards through an unbroken chain of comparisons. This rigorous oversight reduces measurement uncertainty, fulfills international quality standards, and protects manufacturing facilities from operational liability.
Operating an unverified temperature reference creates major compliance liabilities for a manufacturing facility. Because thermal drift happens slowly over months of heating and cooling cycles, a device can fail quietly without showing any physical symptoms. If a quality manager relies on an unverified standard, every secondary sensor calibrated by that unit becomes suspect, which can trigger product recalls.
Adhering to an ISO/IEC 17025 accredited calibration framework removes these operational risks. Metrologists compare the reference calibrator against high-stability Platinum Resistance Thermometers (SPRTs) that maintain direct traceability to the National Institute of Standards and Technology (NIST). This process calculates the exact measurement uncertainty and issues a certified document. This documentation satisfies external quality audits and proves your facility complies with global manufacturing standards.
4. Performance Comparison: Calibrated vs. Drifting Differential Thermometers

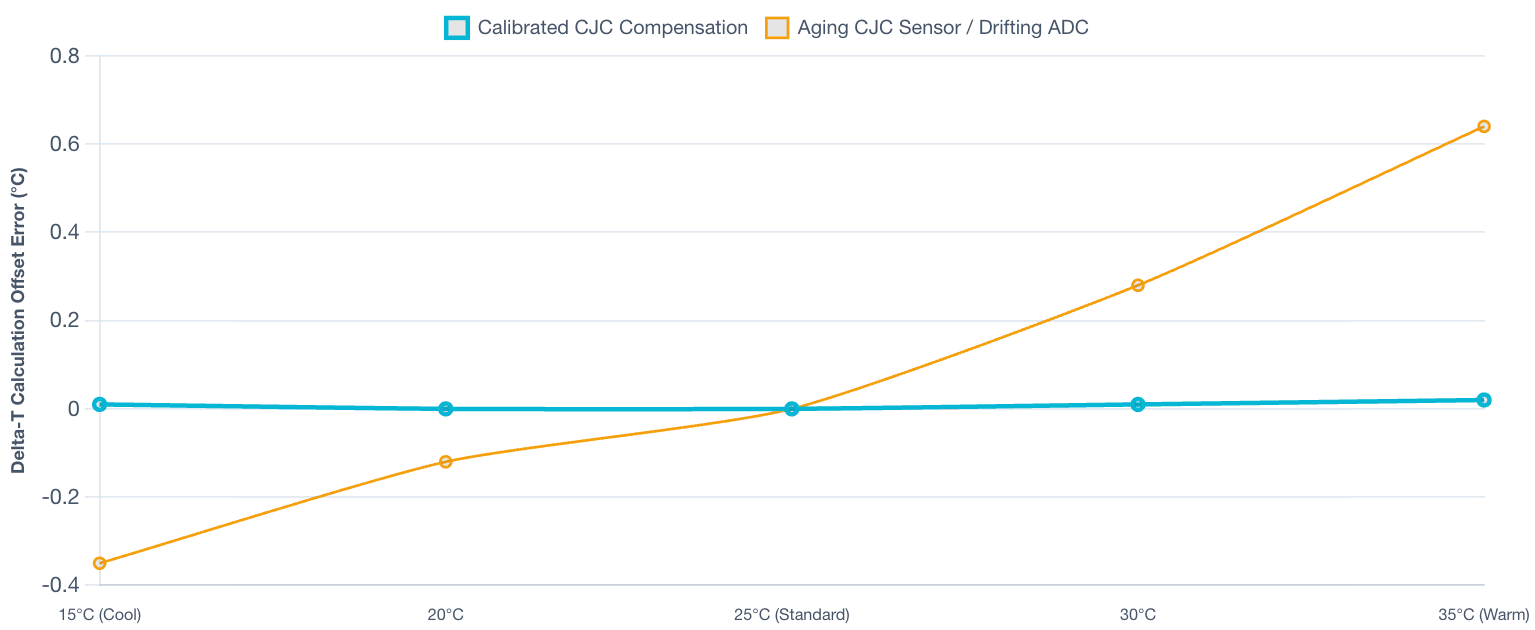

CJC Drift Analysis over Ambient Swings
Comparing Delta-T measurement error relative to ambient temperature variations at the instrument connection terminals (CJC) for calibrated and drifting circuits.
This guide outlines how maintenance technicians should prepare a portable temperature reference for an on-site calibration session.
1. Inspect the Input Terminals and Remove Contaminants
Examine the connection jacks and physical probes closely for any oxidation, fluid residues, or metal burs. Clean the openings with a dry, lint-free swab to ensure reference probes can slide in smoothly without binding or creating air gaps.
2. Verify Probe Insulation and Connection Integrity
Inspect the main power cable and case grounding pins for signs of wear or structural damage. Stable electrical grounding is critical because floating voltages can disrupt the calibrator’s sensitive internal microvolt measurements.
3. Implement Ambient Thermal Stabilization
Place the instrument inside the calibration environment for at least four hours before testing begins. This step allows the internal reference block to reach thermal equilibrium with the room, preventing initial measurement drift.
4. Document System Firmware and Configuration Settings
Record the exact serial number, firmware version, and manufacturer specifications in your asset database. Back up any internal calibration coefficients or user-defined offsets so the technician can assess the device as found.
