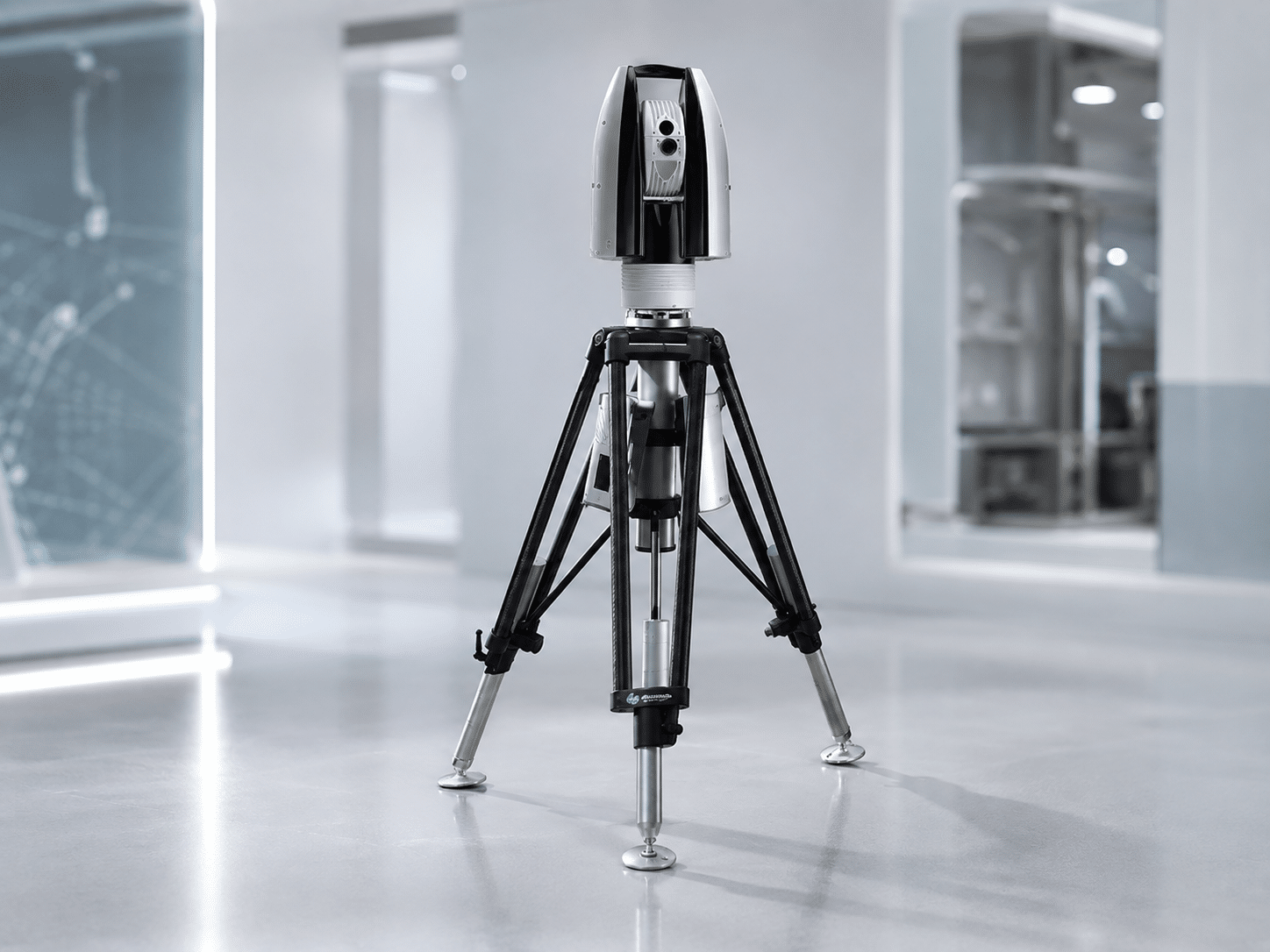

In large-scale manufacturing, aerospace assembly, and precision tooling, accurate dimensional measurement is essential. For this reason, laser tracker calibration plays an important role in maintaining reliable 3D measurements across large work areas. Without certified, NIST-traceable calibration, small errors can develop in the tracker’s gimbal axes, beam-steering system, and thermal sensors. Over time, these errors can affect 3D coordinates and distance measurements. As a result, manufacturers may face incorrect part alignment, tooling errors, production delays, and quality audit issues.

1. How to Verify Laser Tracker Accuracy Before Critical Inspection

Before critical inspection work, technicians should check the laser tracker and its measurement environment. In particular, thermal stability, optical targets, environmental sensors, and reference measurements can affect overall accuracy.

Follow these steps to help ensure reliable 3D coordinate data:

1. Initialize thermal equilibrium: First, power on the laser tracker and allow 30 to 45 minutes for the laser source, optical encoders, and thermal sensors to stabilize.
2. Inspect and clean optical targets: Next, inspect the Spherical Mounted Retroreflectors (SMRs) and tracker optical window. Clean them with lint-free optical wipes and suitable optical cleaning fluid to reduce dirt and beam scatter.
3. Check weather station sensors: Then, verify that the temperature, air pressure, and humidity sensors are working correctly. These values help the tracker compensate for changes in the surrounding air.
4. Run two-face self-compensation: After that, perform measurements in both Telescope Front (Face 1) and Telescope Back (Face 2) positions. This process helps identify and correct certain internal alignment errors before measurement.
5. Check a known reference: Finally, measure a certified scale bar or known reference fixture. Compare the measured result with the known value before inspecting production parts.

These checks can improve measurement stability. However, they should not be treated as a replacement for accredited laboratory calibration.

2. The Calibration Pillar: ISO/IEC 17025 Traceability and Risk Mitigation

ISO/IEC 17025 accredited calibration provides a documented measurement traceability chain to national standards, including standards maintained by the National Institute of Standards and Technology (NIST).

In contrast, routine field checks and software self-compensation only address certain operating conditions. They do not fully test the laser tracker’s measurement system.

For example, a field self-compensation routine may correct some beam alignment and transit errors. However, it does not provide a complete evaluation of distance meter accuracy, angular encoder performance, or the effects of thermal changes on the system.

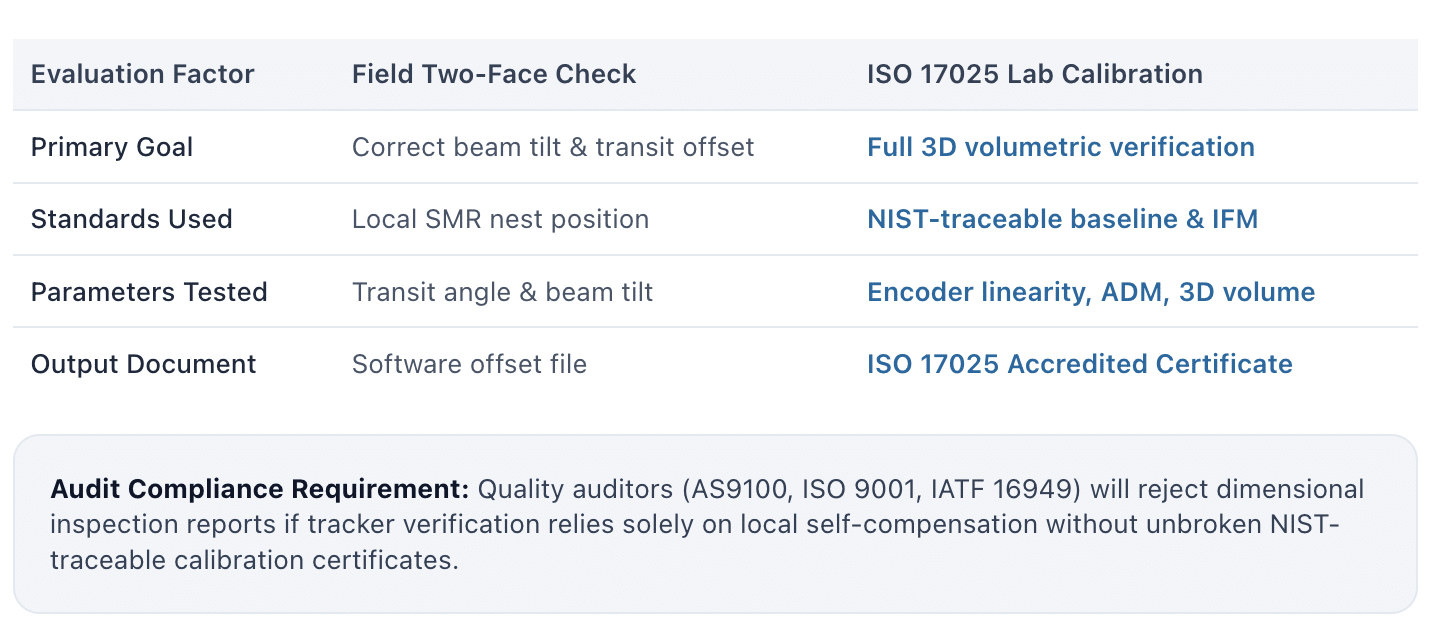

3. Field Two-Face Check vs. ISO/IEC 17025 Accredited Laboratory Calibration

A field two-face check is useful for confirming basic system stability before measurement. However, accredited calibration goes much further by checking the instrument against known standards under controlled conditions.

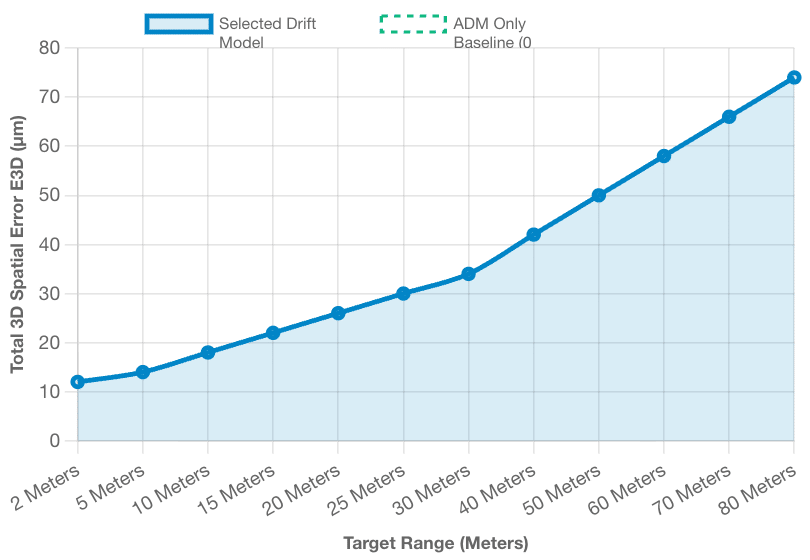

As the distance increases, even a small angular error can create a larger position error. Consequently, a dimensional inspection may show an incorrect part location or alignment. In critical aerospace and manufacturing work, such errors can lead to rework, assembly problems, or product quality issues.

4. Why Regular Laser Tracker Calibration Matters

Regular laser tracker calibration helps manufacturers maintain confidence in dimensional measurement results. In addition, it provides documented evidence that the equipment meets its required measurement performance.

A proper calibration program can help organizations:

• Verify distance measurement accuracy.
• Check angular measurement performance.
• Identify measurement drift over time.
• Maintain NIST measurement traceability.
• Support ISO/IEC 17025 quality requirements.
• Reduce the risk of incorrect inspection results.
• Provide calibration records for customer and quality audits.

Therefore, calibration should be part of the overall measurement equipment management program rather than an occasional corrective action.

Techmaster US: Your Accredited Metrology Partner

Techmaster Electronics, LLC is an ISO/IEC 17025 accredited calibration laboratory (ANAB cert AC-1736) founded in 1989. The company serves customers across the United States through accredited laboratories in Vista, CA; Santa Clara, CA; Orlando, FL; San Antonio, TX; and Holly Springs, NC. Its corporate offices are located in Vista, CA, and Henderson, NV.

In addition, Techmaster US provides accredited dimensional, electrical, RF/microwave, and environmental calibration services. Its laboratory and mobile calibration teams use high-accuracy reference standards to support measurement traceability.

For manufacturers that cannot easily remove equipment from production, on-site calibration can also help reduce shipping risks and equipment downtime. As a result, companies can maintain measurement control while keeping critical inspection equipment available.

Frequently Asked Questions (FAQs)

1. How often should a laser tracker undergo accredited calibration?

A laser tracker should undergo accredited laboratory calibration every 12 months under standard industrial operating conditions to maintain ISO/IEC 17025 compliance and NIST traceability. However, units subjected to harsh shop-floor environments, daily transportation between field sites, or heavy 24/7 manufacturing line utilization should be calibrated every 6 months.

2. What is the difference between laser tracker self-compensation and accredited calibration?

Laser tracker self-compensation is an automated field routine that corrects minor operational optical beam tilts and transit offsets. Accredited calibration is a comprehensive laboratory process that tests angular encoder linearity, ADM distance accuracy, volumetric spatial errors, and sensor performance against NIST-traceable standards.

3. What causes dimensional measurement drift in portable laser trackers?

Dimensional measurement drift is caused by mechanical shock during transportation, thermal expansion of internal structural components, gimbal axis wear, and optical diode aging. Additionally, dirty SMR targets or uncompensated changes in ambient air temperature and pressure introduce systematic spatial errors.

4. How does atmospheric refraction affect laser tracker distance measurements?

Atmospheric refraction alters the speed of light and bends the laser beam path due to localized gradients in air temperature, pressure, and humidity. Without active weather station compensation, air density changes alter the calculated laser wavelength, leading to erroneous distance measurements over long working ranges.

5. Why is ISO/IEC 17025 accreditation required for laser tracker calibration?

ISO/IEC 17025 accreditation proves that a calibration laboratory possesses technical competence, sound quality management systems, validated measurement methodologies, and documented NIST traceability. It ensures that calibration certificates and measurement uncertainty values are legally defensible during quality audits.
