Pressure gauge calibration is essential to ensure accurate pressure measurements in industrial applications. Over time, gauges can drift due to environmental conditions, mechanical wear, or exposure to extreme pressure. Regular calibration helps maintain measurement accuracy, compliance with industry standards, and safe operation. This guide will walk you through how to calibrate a pressure gauge step by step, ensuring you achieve precise and reliable results.
1. Quick Overview & Types of Pressure Gauges

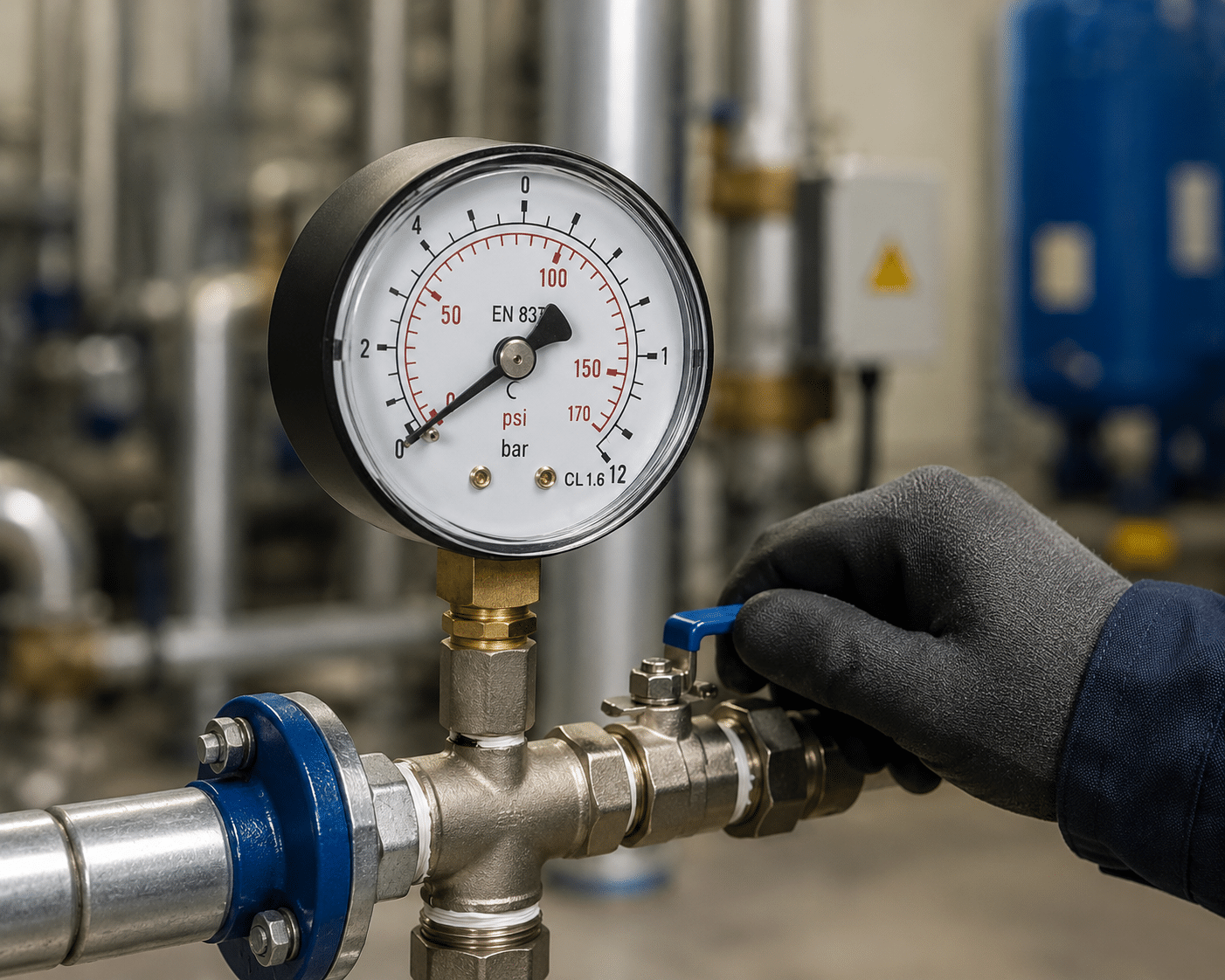

1.1. What is a Pressure Gauge?
A pressure gauge is an instrument used to measure and display the pressure of a gas or liquid in a system. It plays a crucial role in monitoring and maintaining process control in various industries, including manufacturing, oil & gas, pharmaceuticals, and HVAC systems. Pressure gauges help ensure safety, efficiency, and compliance with industry regulations by providing real-time pressure readings.
1.2. Common Types of Pressure Gauges
Different types of pressure gauges are used depending on the application, medium, and required accuracy. Selecting the right gauge is crucial for ensuring accurate pressure gauge calibration and maintaining reliable measurements. Below are the most common types:
1.2.1 Bourdon Tube Pressure Gauge
- Most widely used mechanical gauge.
- Consists of a coiled metal tube that expands or contracts based on applied pressure.
- Suitable for measuring high-pressure applications in industrial processes, hydraulics, and pneumatic systems. Regular calibration of Bourdon tube gauges helps maintain accuracy over time.
1.2.2 Diaphragm Pressure Gauge
- Uses a flexible diaphragm that deforms under pressure.
- Ideal for corrosive, viscous, or sensitive media where traditional gauges may fail.
- Commonly found in chemical and pharmaceutical industries, where pressure gauge accuracy verification is essential for process control.
1.2.3 Capsule Pressure Gauge
- Designed for measuring very low pressures, primarily in gas applications.
- Contains two thin diaphragms welded together to form a capsule.
- Often used in HVAC, medical equipment, and environmental monitoring systems. Routine pressure gauge calibration procedures ensure these gauges provide precise readings.
1.2.4 Digital Pressure Gauge
- Uses electronic sensors to provide accurate, real-time readings on a digital display.
- Offers higher precision than analog gauges and often includes data logging capabilities.
- Commonly used in laboratories, calibration facilities, and modern industrial processes. Calibrating digital pressure gauges is necessary to maintain their superior accuracy.
1.2.5 Differential Pressure Gauge
- Measures the pressure difference between two points in a system.
- Essential for monitoring filtration systems, flow measurement, and level monitoring in tanks.
- Helps detect blockages or pressure imbalances in critical systems. Proper pressure gauge calibration is crucial to ensure these measurements remain reliable.
Understanding the type of gauge being calibrated ensures the correct procedure and equipment are used, leading to accurate and traceable pressure gauge calibration results.
2. What is Pressure Gauge Calibration?
Pressure gauge calibration is the process of comparing a gauge’s readings with a known reference standard to determine accuracy. If discrepancies are found, adjustments can be made to bring the gauge back within acceptable tolerance levels. Calibration follows industry standards such as ISO 17025, ASME B40.100, and ANSI.
3. Equipment Required for Calibration
To perform pressure gauge calibration, specific equipment is required to ensure precision and traceability.
- Reference Standard: A highly accurate pressure gauge (e.g., digital pressure gauge) or dead-weight tester, calibrated and traceable to national standards, with accuracy typically ±0.1% or better.
- Pressure Source: A hand pump or pressure comparator to generate known pressure levels, such as the P-700-3 hydraulic hand test pump.
- Adaptors and Connectors: Necessary fittings to connect the gauge under test to the reference standard and pressure source, ensuring no leaks.
- Calibration Certificate: Documentation proving the calibration, including date, technician, and results, often required for audits.

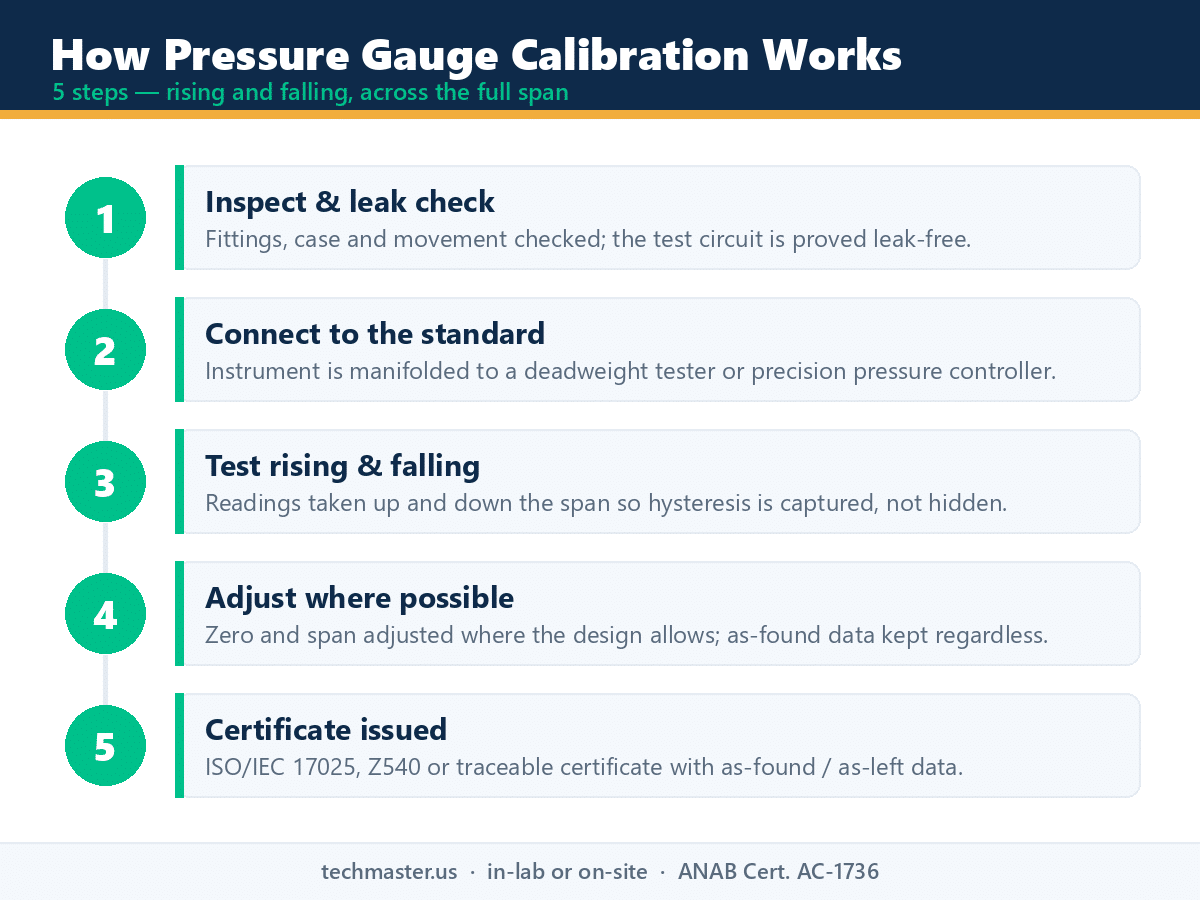

4. Step-by-Step Pressure gauge Calibration Procedure
The calibration process, often referred to as the pressure gauge calibration procedure, involves a series of systematic steps to verify and adjust the gauge’s accuracy. Below is a detailed breakdown:
Step 1: Preparation
-
- Ensure the pressure gauge is clean and free from visible damage or debris.
- Verify that the reference standard is calibrated and traceable to a recognized standard, such as those defined by ASME B40.1 for dial-type gauges or ASME B40.7 for digital gauges.
- Check compatibility of the pressure medium, especially for gauges used in oxygen service, where oil-based calibrators should be avoided.
Step 2: Set Up the Pressure Gauge Calibration Range
-
- Determine the gauge’s measurement range, including the minimum and maximum pressures (e.g., 0 to 10 bar).
- Set up the calibration equipment to cover this range, ensuring the pressure source can generate the required levels.
Step 3: Connect the Gauge
-
- Mount the gauge in the same orientation as its normal use to account for any gravitational effects.
- Connect the gauge under test (UUC, or Unit Under Calibration) to the pressure source and the reference standard, using adaptors to ensure secure connections.
- Include a block valve to isolate the pressure source and a bleeding valve for releasing pressure, ensuring safety.
Step 4: Apply Pressure and Record Readings
-
- Apply pressure in increments across the gauge’s range, typically at 0%, 25%, 50%, 75%, and 100% of full scale. For example, for a 0-10 bar gauge, apply pressures at 0, 2.5, 5, 7.5, and 10 bar.
- Record the readings from both the gauge under test and the reference standard at each point.
- Repeat the process for decreasing pressures to check for hysteresis, which indicates mechanical or electronic lag in the gauge’s response.
Step 5: Compare and Adjust the Pressure Gauge Calibration
-
- Compare the readings from the gauge under test with those from the reference standard. Calculate the error using the formula:
Error = Reading of Gauge Under Test – Reading of Reference Standard. - If the gauge is adjustable, use a pointer puller or remover to adjust the pointer to match the reference standard at key points, such as full scale.
- For digital gauges, adjustments may involve recalibrating the electronic output, such as scaling a 4-20 mA signal (e.g., 4 mA = 0 bar, 20 mA = 100 bar).
- Compare the readings from the gauge under test with those from the reference standard. Calculate the error using the formula:
Step 6: Document the Results
-
- Record all data, including the calibration range, reference standard used, any adjustments made, and the date and time of calibration.
- Include the technician responsible and provide a calibration certificate as evidence of accuracy, which may be required for ISO 9000 qualified laboratories or audits.
5. Best Practices for Accurate Pressure Gauge Calibration
To ensure the calibration process is effective and reliable, consider the following best practices:
- Follow Manufacturer Instructions: Some gauges may require special procedures, such as temperature compensation or multiple adjustments for different pressure ranges. Always refer to the manufacturer’s guidelines for specific instructions.
- Use Traceable Standards: The reference standard should have an accuracy of at least 4 times that of the gauge under test, or a lower combined standard measurement uncertainty, to meet industry norms.
- Handle with Care: Avoid damaging the gauge during calibration, as physical shock can affect accuracy. Use a spirit level to ensure the setup is level, especially for dead-weight testers.
- Account for Environmental Factors: Perform calibration in stable temperature conditions, as temperature can affect both the gauge and the reference standard. For example, extreme temperatures may require additional temperature compensation.
For gauges in critical applications, such as medical sterilizers or high-pressure systems, the calibration process may involve additional safety precautions, such as venting both high and low-pressure ports to the atmosphere before starting.
6. When Should You Calibrate a Pressure Gauge?
The frequency of pressure gauge calibration depends on several factors, including the gauge’s application, operating conditions, and manufacturer recommendations. Industry standards, such as those outlined by the International Maritime Organization (IMO) and ISO audits, often mandate at least annual calibration for compliance. For example, IMO article 13.1.4 states that instruments should be tested for reliability and recalibrated at regular intervals, with intervals typically interpreted as at least once a year.
Immediate pressure gauge calibration may be necessary in certain scenarios, such as:
- After the gauge has been dropped or subjected to physical shock.
- Following exposure to extreme temperatures or pressures.
- When unusual readings are observed, indicating potential inaccuracy.
- Post-repair or adjustment to ensure the gauge returns to accurate operation.
7. Conclusion
Regular pressure gauge calibration is crucial for accurate and reliable measurements. By following a structured calibration procedure, industries can maintain compliance, enhance safety, and optimize operational efficiency. If you need professional calibration services, consider partnering with an accredited lab to ensure the highest standards of accuracy.
