Ultrasonic Flaw Detector Calibration: ISO/IEC 17025 Step-by-Step Guide

For Non-Destructive Testing (NDT) professionals, quality managers, and field inspection engineers, regular ultrasonic flaw detector calibration is essential for accurate inspections. Over time, heat, daily use, and aging can affect the detector’s internal circuits. As a result, the instrument may show incorrect signal levels or flaw depths. Therefore, regular calibration helps maintain accurate results and supports safe, reliable inspections.

1. Technical Principles of Ultrasonic Flaw Detection

How does an ultrasonic flaw detector find internal defects?

An ultrasonic flaw detector uses high-frequency sound waves to inspect the inside of a material without cutting or damaging it. Typically, these sound waves range from 0.5 MHz to 25 MHz.

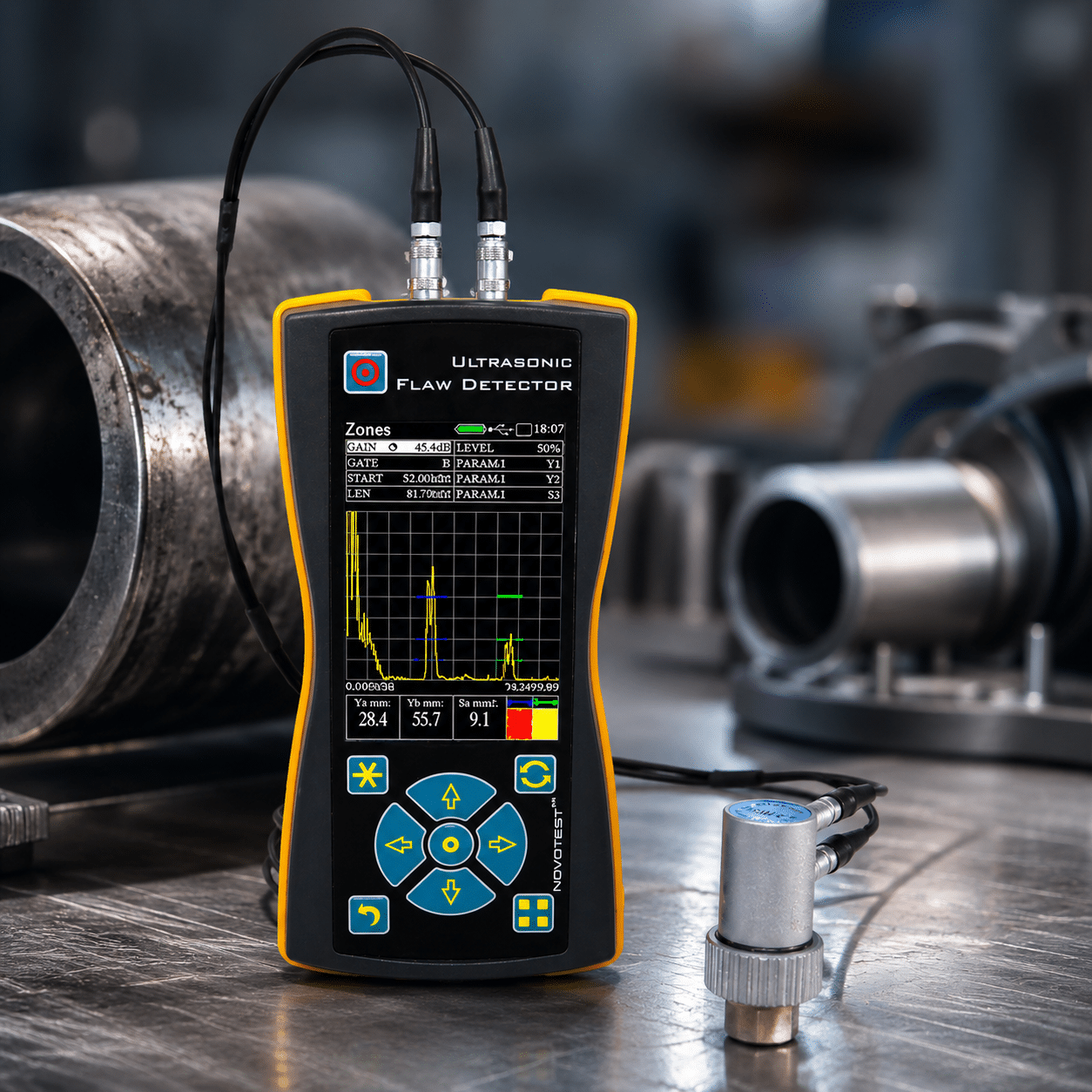

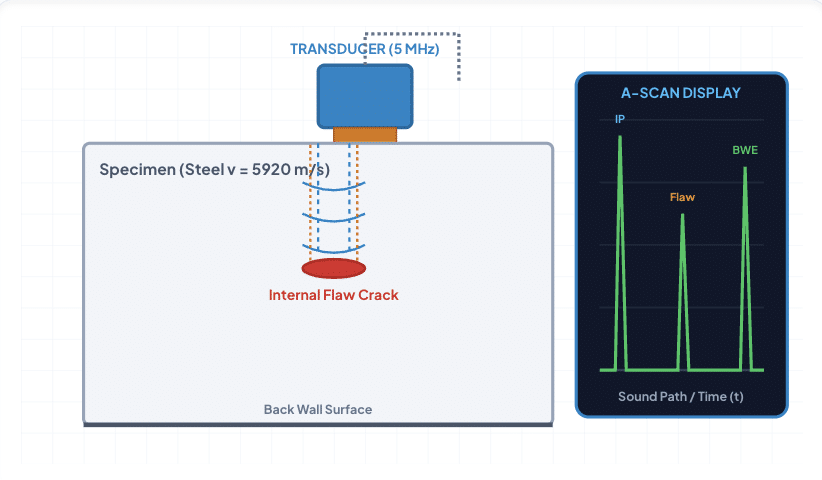

First, the instrument sends an electrical pulse to a piezoelectric transducer. Next, the transducer changes this pulse into a sound wave and sends it into the test material.

When the sound wave reaches a material boundary or internal defect, part of the wave returns to the transducer. For example, cracks, voids, and inclusions can reflect part of the sound wave because they have different acoustic properties.

The detector then changes the returned signal into an electrical signal and shows it as an A-scan waveform. Therefore,inspectors can use the signal to estimate the location and size of a defect.

The basic acoustic impedance formula is: $Z=\rho \cdot v$

where Z represents acoustic impedance, ρ represents material density, and v represents sound velocity.

To ensure accurate results, calibration should check several key functions.

1.1. Time-Base Linearity and Sound Velocity

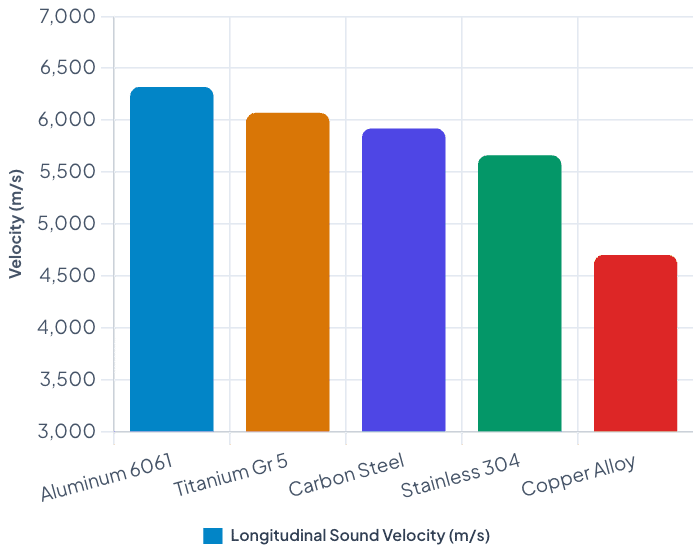

First, technicians check the time base and sound velocity settings. The detector must measure the travel time of the sound wave correctly. As a result, inspectors can calculate the correct depth of an internal flaw.

The basic depth formula is: d=v⋅t2d=2v⋅t​

where d represents flaw depth, v represents sound velocity, and t represents sound travel time.

1.2. Amplifier and Attenuator Linearity

Next, technicians check the gain and attenuator controls. This step confirms that changes in signal strength appear correctly on the display. As a result, inspectors can compare signals from different defects with greater confidence.

1.3. Pulser and Receiver Performance

In addition, calibration checks the pulser and receiver response. The test confirms that the instrument produces the correct pulse and receives signals across its rated frequency range.

1.4. Electronic Drift

Finally, calibration helps identify changes in internal electronic circuits. Over time, heat and repeated use can change the performance of amplifiers, converters, and timing circuits. Therefore, regular calibration helps keep the detector within its required accuracy limits.

2. Industrial Applications: Where NDT Accuracy Matters

Which industries rely on ultrasonic inspection?

Many industries use ultrasonic testing because it can find internal defects without damaging the test part. In particular, it plays an important role in industries where material failure can create serious safety risks.

• Aerospace Engineering: For example, aerospace teams use ultrasonic testing to inspect composite structures, turbine blades, and landing gear parts. In this way, inspectors can find internal cracks, delamination, and other hidden defects before parts enter service.
• Oil and Gas: Similarly, oil and gas companies use ultrasonic testing to inspect pipelines, pressure vessels, and offshore equipment. As a result, inspectors can find wall thinning, corrosion, and cracks before they cause equipment failure.
• Civil Infrastructure: In addition, inspection teams use ultrasonic testing on bridges, structural steel, and important welds. Therefore, they can find hidden problems and support safe maintenance work.
• Automotive and Heavy Manufacturing: Likewise, automotive and heavy equipment manufacturers inspect engine blocks, crankshafts, welds, and other parts. This helps production teams identify internal defects before final assembly or delivery.

3. The Calibration Pillar: ISO/IEC 17025 Compliance

Why is ISO/IEC 17025 important for ultrasonic calibration?

ISO/IEC 17025 is an international standard for testing and calibration laboratories. In particular, it sets requirements for technical skill, measurement control, and traceable results.

When you use an ISO/IEC 17025 accredited laboratory, technicians evaluate the instrument with suitable reference standards. In addition, the calibration record includes measurement results and uncertainty information.

As a result, your team has clear evidence that the ultrasonic flaw detector meets its required performance level.

An uncalibrated detector can create serious inspection risks. For example, electronic drift may change the displayed signal or flaw depth. Consequently, an inspector could miss a real defect or reject a good component.

Therefore, regular calibration is an important part of an effective NDT quality program.

4. How to Verify Ultrasonic Flaw Detector Performance

Step-by-step pre-inspection verification guide

Before starting an inspection, perform a basic performance check. This helps confirm that the detector and probe are ready for use.

1. Warm Up the Instrument: First, turn on the detector and allow it to warm up for 15 to 30 minutes. During this time, the internal electronics can reach a stable operating condition.
2. Inspect the Connectors and Transducer: Next, check the probe, cable, and connectors. Also, inspect the transducer face for cracks, wear, or other damage.
3. Perform Velocity Calibration: Then, place the transducer on a certified calibration block, such as an IIW or V1 block. After that, use known material thickness points to set the correct sound velocity.
4. Check Time-Base Linearity: Next, check several back-wall echoes on the calibration block. This confirms that the detector displays signal arrival times correctly across the screen.
5. Check Vertical Gain Linearity: Finally, adjust the gain and compare known signal levels. For example, a 2:1 change in signal amplitude should produce the expected 6 dB change on the display.

By following these steps, technicians can confirm basic detector performance before beginning the inspection.

Frequently Asked Questions (FAQs)

1. What does ultrasonic flaw detector calibration include?

Ultrasonic flaw detector calibration checks key functions such as time-base accuracy, vertical gain, pulser output, attenuator response, and display performance. In addition, the process checks whether the electronic unit meets its required specifications.

2. How often should an ultrasonic flaw detector be calibrated?

In general, annual calibration is a common interval for industrial NDT equipment. However, high-use environments may need calibration every six months. Similarly, aerospace and other safety-critical applications may require shorter intervals based on company procedures and risk.

3. What is the difference between daily field checks and accredited calibration?

Daily field checks help confirm that the instrument works correctly before an inspection. For example, technicians can use a reference block to check velocity, zero, and signal response.

In contrast, accredited calibration provides a deeper check of the instrument’s internal electronics. It also compares measurement results with traceable reference standards.

4. How does electronic drift affect ultrasonic testing?

Over time, heat, component aging, and regular use can change the detector’s internal timing and gain circuits. As a result, the instrument may show incorrect flaw depth or signal amplitude.

5. Can daily field checks replace professional calibration?

No. Although daily checks help confirm normal operation, they do not replace professional calibration. Instead,accredited calibration provides a more complete check of the instrument’s internal measurement functions.

6. How often should I check an ultrasonic flaw detector before use?

Typically, technicians should perform a basic function check before each inspection or work shift. In addition, they should follow the equipment manufacturer’s instructions and their company’s NDT procedures.

7. Can Techmaster US perform on-site calibration for ultrasonic NDT equipment?

Yes. Techmaster Electronics provides ISO/IEC 17025 accredited calibration services, including on-site support. As a result, customers can verify their equipment at their facility while reducing shipping and equipment downtime.
