1. Introduction to Communications Service Monitor Calibration

Communications Service Monitors (CSM) are indispensable in testing, troubleshooting, and maintaining radios, transceivers, and communication networks.
Regular calibration is critical to ensure these instruments continue to provide accurate frequency, power, and modulation measurements — especially in industries where communication reliability is mission-critical (aerospace, defense, emergency services).

2. What is a Communications Service Monitor?

A Communications Service Monitor is an all-in-one test platform that combines functions such as:

• RF Signal Generator and Analyzer

• Modulation/Demodulation Analyzer (AM, FM, Digital)

• Audio and Baseband Test Modules

• Spectrum Display and Transmitter Power Measurement

These instruments help engineers and technicians quickly validate communication devices — from handheld radios to complex trunked network systems.

3. Why Calibration is Critical

Over time, internal reference oscillators and measurement circuits drift, resulting in:

• Frequency offsets leading to out-of-spec test results

• Power measurement errors impacting transmitter compliance

• Modulation inaccuracies affecting communication clarity

Proper calibration:

• Restores measurement accuracy to manufacturer or standard specifications

• Ensures compliance with ISO/IEC 17025 and ANSI/NCSL Z540.1 requirements

• Minimizes downtime by identifying and correcting issues early

• Reduces risk of costly retesting or equipment failure in the field

4. Calibration Standards and Compliance

At Techmaster Electronics, all calibrations are:

• Traceable to NIST or other National Metrology Institutes for a clear measurement chain

• Offered at three service levels:

  • Commercial Calibration (NIST traceable certificate)

  • ANSI/NCSL Z540.1 Calibration (with test data and TARs)

  • ISO/IEC 17025 Accredited Calibration (with full data and uncertainty reporting, globally recognized under ANAB & ILAC-MRA)

These service levels allow organizations to choose the right calibration depth for internal QA programs or regulatory compliance.

5. Step-by-Step Calibration Process for Communications Service Monitors

1. Pre-Check & Preparation
   Inspect CSM for physical damage, firmware status, accessories.

2. Warm-Up & Environmental Stabilization
   Ensure temperature/humidity conditions align with standards.

3. Reference Verification
   Connect the instrument to high-precision RF standards (frequency, power, modulation references).

4. Functional Tests
   Validate key parameters:

   • RF frequency accuracy (typically measured in parts-per-million)

   • RF output/input power linearity

   • AM/FM deviation and distortion

   • Receiver sensitivity and SINAD performance

5. Adjustments (If Required)
   Fine-tune internal oscillators, attenuators, and reference sources.

6. Final Verification & Documentation
   Issue certificate with all measured results, noting out-of-tolerance points and uncertainties.

6. Common Issues Detected During Calibration

• Frequency Drift: A few Hz to kHz deviation over time in aging oscillators

• RF Level Inaccuracy: Under- or over-reporting of transmitter power

• Degraded Receiver Sensitivity: Often due to front-end filter aging or contamination

• Modulation Distortion: Affects voice clarity and digital communication reliability

7. Choosing a Reliable Calibration Partner

• 30+ years of experience providing calibration across RF, electrical, and time/frequency domains

• A global lab network (USA, Vietnam, Thailand, Mexico) plus on-site calibration options to minimize downtime

• Short turnaround times, local pickup & delivery, and integrated repair + rental services for out-of-tolerance equipment

• A customer portal for 24/7 access to certificates, recall alerts, and equipment records — streamlining compliance management.

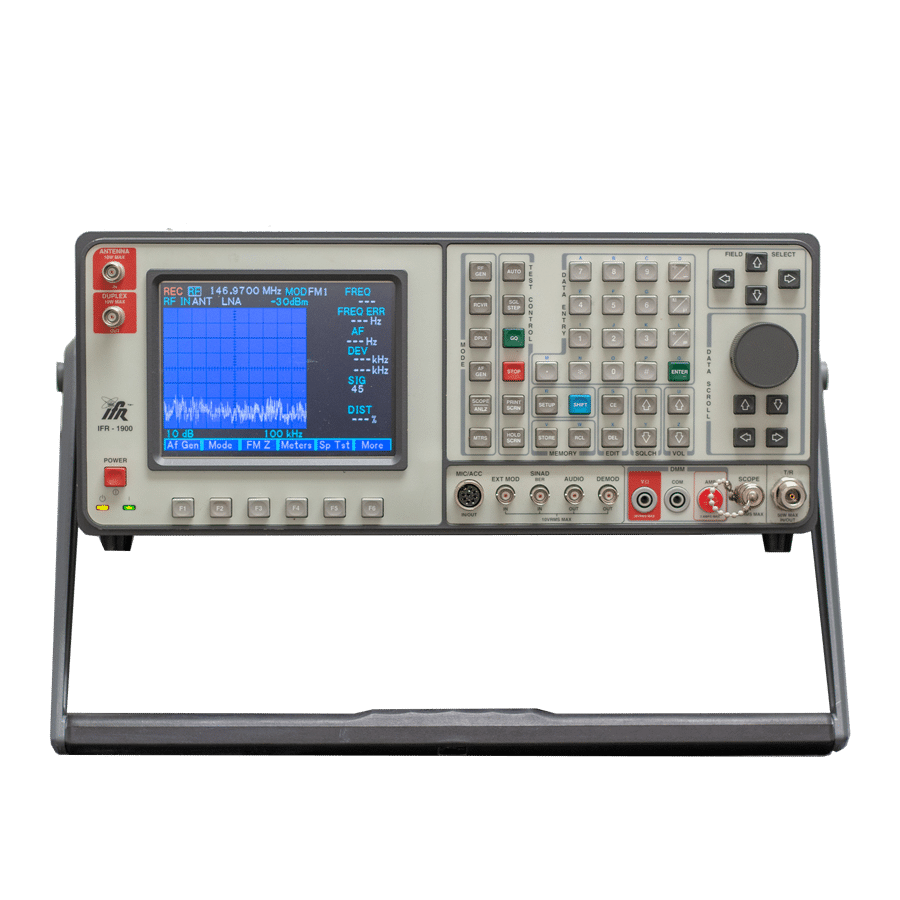

Case Study: IFR-1900 Calibration in a Regional Telecom Workshop

A regional telecom workshop relied on an IFR-1900 Communications Service Monitor for daily testing of handheld radios and repeater systems.
Over time, technicians noticed uneven power readings and slight audio distortion during alignment. This caused them to repeatedly troubleshoot radios that were actually working fine — leading to longer service times and more customer complaints.

The workshop decided to send the IFR-1900 to Techmaster Electronics for a full ISO/IEC 17025 accredited calibration.

Results after calibration:

• RF power readings were corrected by 1.8 dB compared to before calibration.

• Frequency reference returned to within ±0.2 ppm, matching the manufacturer’s specification.

• Troubleshooting time dropped by 25% for each device tested.

• Technicians gained more confidence in the readings, helping the team meet service level agreements (SLAs) with local emergency-service clients.

This case shows that regular calibration can directly improve service speed and reliability for critical communication equipment in the field.

8. Maintenance Tips to Extend Calibration Intervals

• Keep instruments in controlled temperature/humidity environments

• Avoid unnecessary rough handling and over-drive of RF inputs

• Use regular self-checks (if supported by the model) between formal calibrations

• Maintain dust-free, low-EMI conditions in the workspace
