How Often Calibrate Cable & Antenna Analyzer?

Cable & Antenna Analyzer FAQ: Calibration Intervals, Accuracy & Compliance

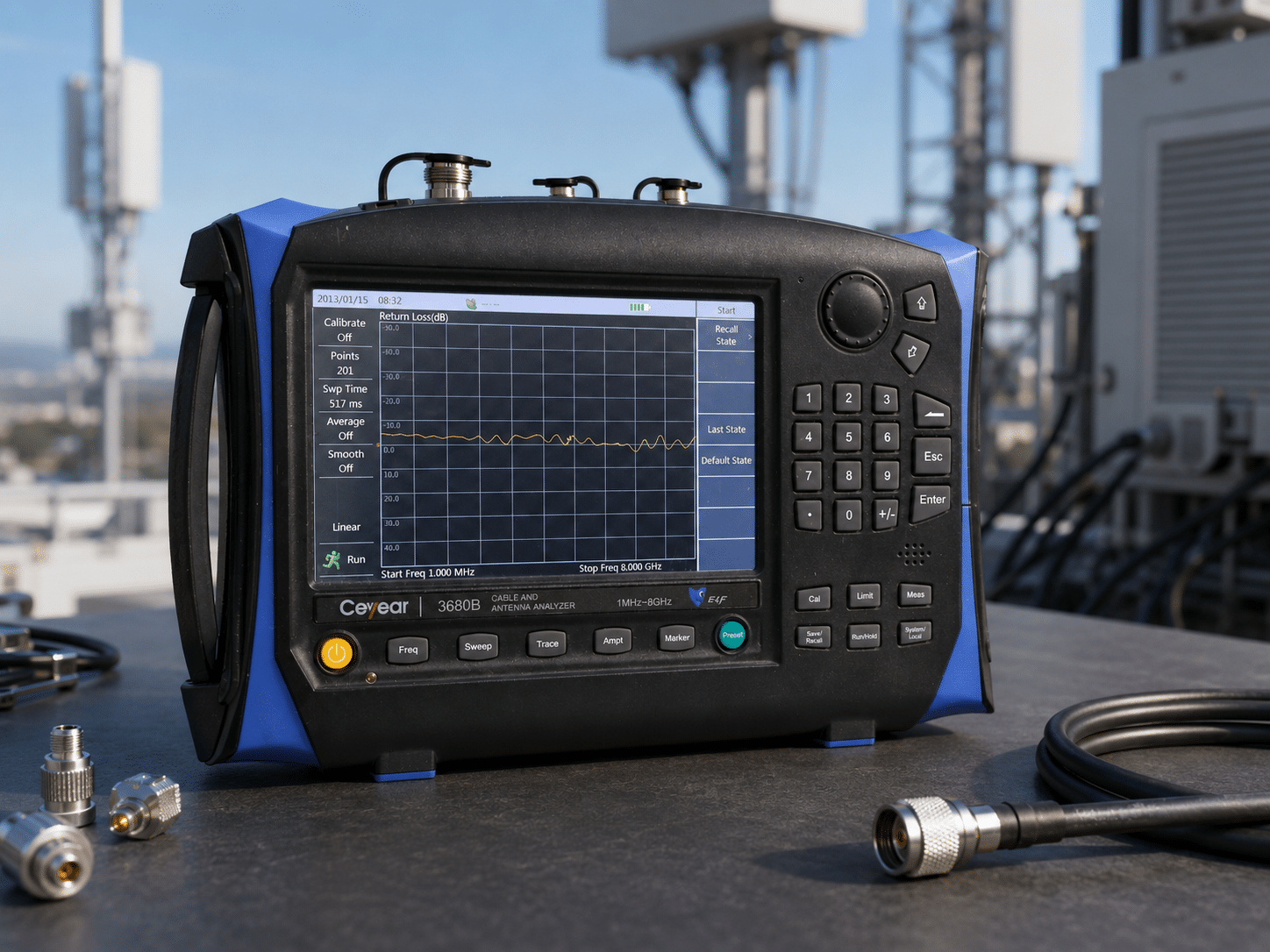

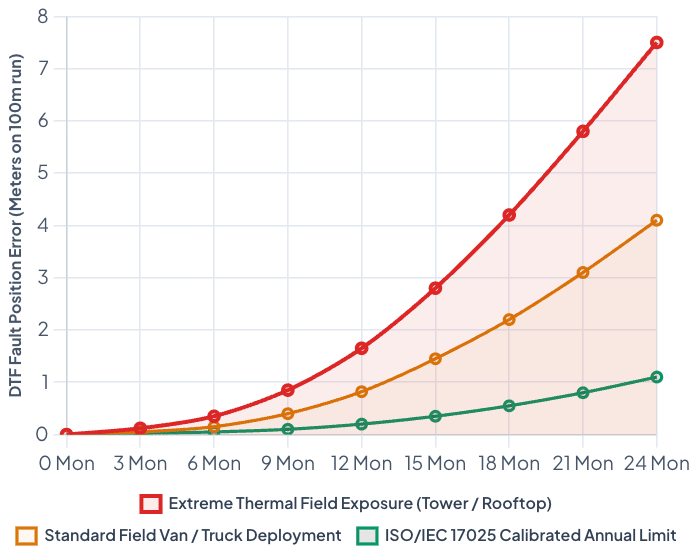

In commercial wireless telecommunications, aerospace and defense, and broadcasting, transmission line testing depends on accurate RF measurements. Field engineers, QA managers, and metrologists often ask how often to calibrate cable and antenna analyzer instruments to maintain reliable test results. Over time, however, temperature changes, mechanical vibration, and component aging can affect internal RF circuits. As a result, electronic drift may develop in synthesizers, directional bridges, and receiver attenuators. Without regular calibration, these changes can affect Distance-to-Fault (DTF), Return Loss, and Voltage Standing Wave Ratio (VSWR) readings. Therefore, routine calibration helps prevent incorrect fault diagnosis, equipment damage, and audit issues.

1. How Often Should You Calibrate Electronic Test Equipment?

What factors determine the calibration interval?

The right calibration interval depends on several factors. Therefore, organizations should review the instrument’s use, environment, and past calibration results before setting a fixed schedule.

• Manufacturer Recommendations: First, check the original equipment manufacturer’s recommended calibration interval. For many electronic test instruments, the baseline interval is 12 months.
• Operating Environment: Next, consider where the instrument operates. Equipment used outdoors, in cleanrooms, or on high-vibration production floors may experience more stress than equipment used in a controlled laboratory.
• Duty Cycle and Workload: In addition, instruments used continuously on 24/7 production lines can experience more electrical and thermal stress. As a result, these instruments may need more frequent calibration.
• Regulatory and Industry Requirements: Furthermore, quality systems such as ISO 9001, AS9100, IATF 16949, and ISO 13485 may require regular equipment checks and calibration.
• Historical Drift Data: Finally, review previous “As-Found” calibration results. If an instrument shows repeated drift, the calibration interval may need to become shorter. On the other hand, stable equipment may support a longer interval when your quality system allows it.

2. What Are the Risks of Delayed Calibration?

Postponing calibration can create serious measurement risks. In particular, electronic drift can cause an instrument to report values that differ from the true signal.

There are two main types of measurement errors:

• False Acceptance: If an instrument reports a value that is lower than the actual value, a defective product may pass inspection. As a result, the product may reach the customer and create safety, quality, or warranty problems.
• False Rejection: Conversely, an instrument may report a value that is higher than the actual value. Therefore, a good product may fail inspection. This can lead to unnecessary scrap, rework, and production delays.

Because of these risks, regular calibration helps organizations maintain reliable test results and reduce the cost of measurement errors.

3. Daily Verification vs. Accredited Laboratory Calibration

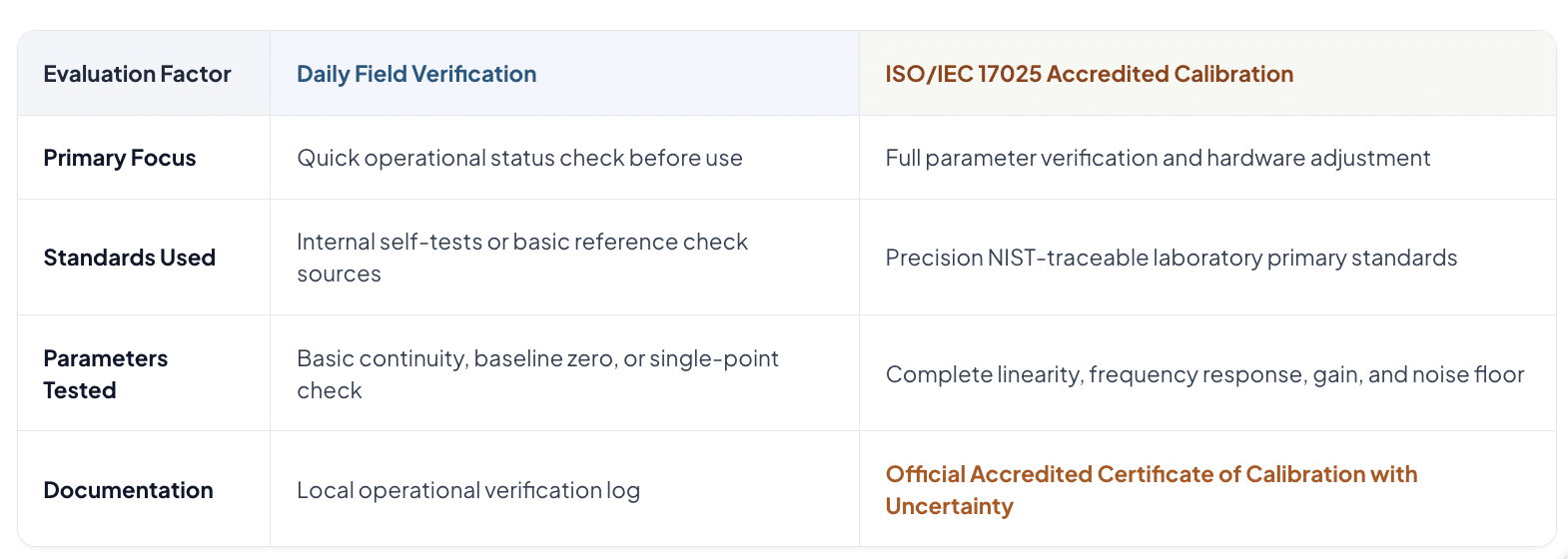

Daily verification and accredited calibration serve different purposes. Therefore, technicians should not treat them as the same process.

For example, a field technician may perform a quick verification before testing a transmission line. However, this check does not replace a full laboratory calibration.

4. How to Verify Electronic Test Equipment Before Critical Testing

Before starting an important measurement, technicians should perform several basic checks. These steps can help identify simple problems before they affect test results.

1. Allow the Instrument to Warm Up: First, power on the instrument and allow it to reach thermal stability. A typical warm-up period may range from 15 to 30 minutes, depending on the manufacturer’s instructions.
2. Inspect Physical Connections: Next, inspect input terminals, coaxial cables, adapters, and test leads. Check for loose connections, corrosion, damaged shielding, or worn connectors.
3. Run the Internal Self-Check: Then, run the instrument’s built-in self-test, zero adjustment, or internal alignment routine when available. This step can help remove simple local offsets.
4. Perform a Reference Check: After that, connect a known and stable reference source or check standard. Compare the displayed value with the expected value to confirm basic measurement performance.
5. Check the Environment: Finally, make sure the temperature and humidity remain within the manufacturer’s specified operating range. For example, some laboratory measurements use a controlled temperature near 23°C ± 5°C.

If the instrument shows an unexpected result during these checks, do not rely on the measurement for critical testing. Instead, investigate the cause or send the instrument for professional calibration.
