Choose a caliper by matching its measuring range, stated accuracy, resolution or scale interval, jaw style, environmental protection, and data needs to the feature and tolerance you must inspect. Vernier, dial, and digital calipers can all measure outside, inside, depth, and step features in common configurations, but their reading systems and failure modes differ. Always evaluate the complete manufacturer specification, not the display increment alone.
Vernier, dial, and digital calipers compared
| Type | How it is read | Typical advantages | Limitations to consider | Data output |
|---|---|---|---|---|
| Vernier | Main scale aligned with a vernier scale | No battery; simple mechanism; useful where electronics are undesirable | Slower to read; technique and eyesight can affect reading; easy to misread units or interpolation | Usually manual |
| Dial | Rack and pinion moves a pointer across a dial | Fast visual reading; movement can make trends easy to see | Gear contamination, shock, backlash, and pointer-zero errors require attention | Usually manual |
| Digital | Electronic scale with numeric display | Quick reading; easy inch/mm switching where provided; models may support data capture | Battery, ingress, electrical noise, display behavior, and accidental zero setting can matter | Model-dependent wired or wireless output |
These are broad selection characteristics, not universal specifications. A high-quality vernier model may outperform a poorly suited digital model. Consult the current datasheet for the exact catalog number. Mitutoyo’s technical bulletin on digital, dial, and vernier calipers explains that accuracy specifications depend on measured length and reading-system characteristics and points readers to ASME B89.1.14 for the technical basis.
Resolution and accuracy are different
The VIM defines resolution as the smallest change in the quantity being measured that causes a perceptible change in indication. For a digital caliper, the displayed increment is easy to see. For a dial or vernier instrument, the scale interval and reading method matter.
Resolution does not equal accuracy. A caliper displaying 0.01 mm is not automatically accurate to ±0.01 mm. Maximum permissible error may vary with measured length, and the measurement result also depends on jaw geometry, alignment, contact force, temperature, surface condition, operator technique, and uncertainty of the verification or calibration references.
Use a micrometer when the application demands it
Calipers are versatile and fast, but their long jaws and sliding beam can make them more sensitive to alignment and force. An outside micrometer uses a screw mechanism and opposed measuring faces for a narrower kind of measurement. When the tolerance is tight, compare the manufacturer’s stated accuracy and the achievable measurement uncertainty for both tools. Do not select by resolution alone.
A micrometer may be preferable for repeatable outside measurements on suitable geometry. A caliper may be preferable when one instrument must reach inside, outside, depth, and step features. Other geometries may require bore gauges, height gauges, depth micrometers, or purpose-built fixtures.
Selection worksheet
| Question | Requirement to document |
|---|---|
| What feature will be measured? | Outside, inside, depth, step, groove, shoulder, or another geometry |
| What range is needed? | Minimum and maximum working dimensions, including jaw reach |
| What tolerance drives the decision? | Drawing or process limit and an acceptable measurement uncertainty |
| What environment will it face? | Coolant, dust, humidity, temperature variation, vibration, electromagnetic conditions, and cleaning agents |
| How will results be recorded? | Manual entry, cable, wireless transfer, or no retained data |
| Who will use it? | Training, glove use, vision, language, and risk of unit or zero-setting errors |
| How will performance be controlled? | Pre-use checks, reference artifacts, cleaning, storage, calibration, and event triggers |
Three illustrative choices
General shop inspection
A digital caliper may speed reading and data entry where coolant protection and unit control are addressed. Select a model whose range and accuracy specification fit the actual tolerance, then verify the data interface with the quality system.
Battery-restricted or low-electronics area
A vernier caliper may remove battery and electronic concerns. Confirm that operators can read the scale reliably and that the selected scale interval and stated accuracy meet the requirement.
Quick comparative checks
A dial caliper can make small movement easy to see. Protect the rack from contamination and shock, check the pointer returns to zero, and control backlash or damage through checks.
These examples are not product recommendations; the correct choice depends on the exact specification and measurement process.
Care and verification limits
- Clean the jaws and workpiece without damaging measuring faces.
- Inspect for burrs, wear, looseness, jaw damage, smooth travel, and zero behavior.
- Use light, consistent force and keep the jaws square to the feature.
- Allow the tool, references, and workpiece to stabilize when temperature matters.
- Check with suitable reference artifacts at points representative of use; a closed-jaw zero check covers only zero.
- Remove the tool from service after a drop, impact, contamination event, failed check, or inconsistent reading.
- Preserve as-found results before adjustment or repair.
A reference check can reveal obvious problems, but it does not replace a technically adequate calibration when calibration is required. Traceability applies to measurement results and requires a documented calibration chain with uncertainty, as explained by NIST. Learn more about the service process on Techmaster’s caliper calibration page and related dimensional calibration overview.
Frequently asked questions
What is caliper calibration?

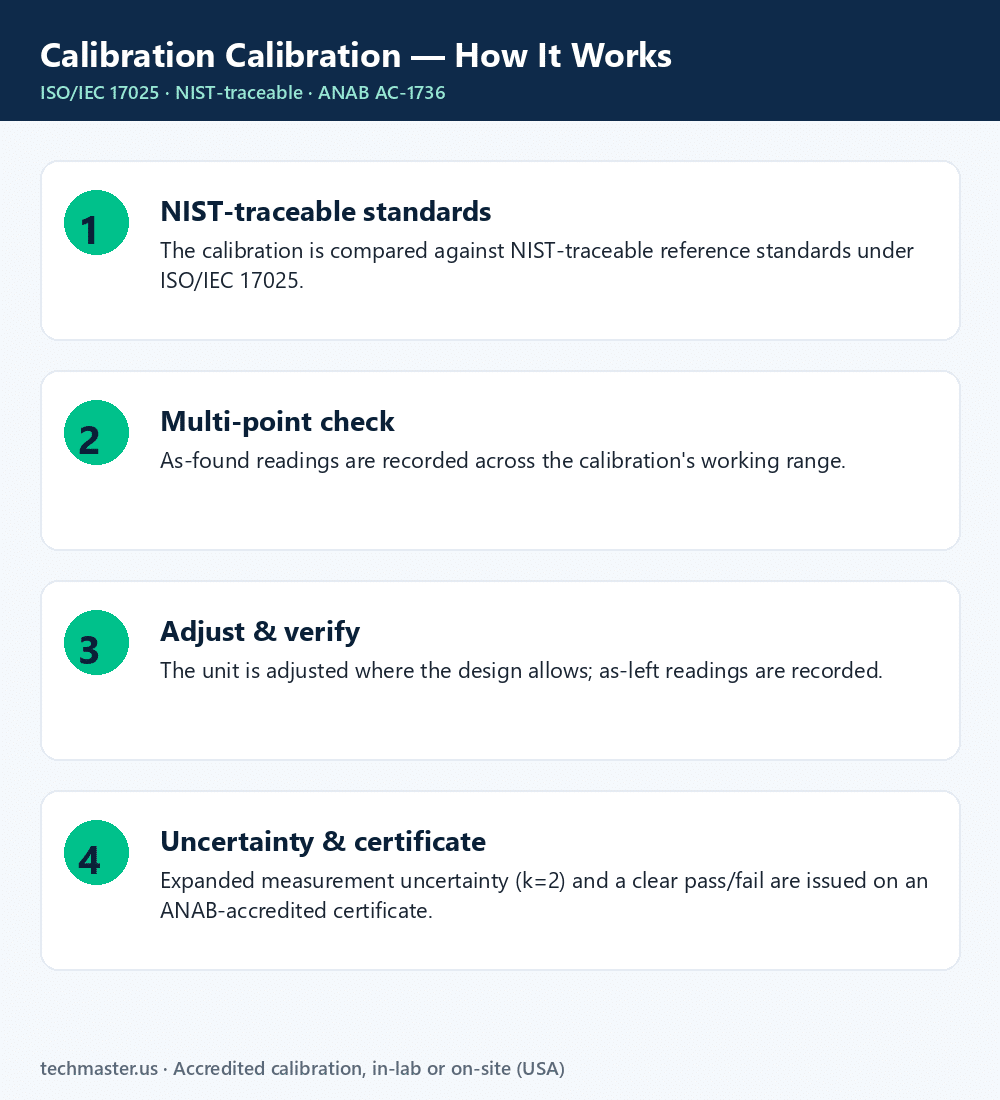

Caliper Calibration is the documented comparison of a caliper against NIST-traceable reference standards under ISO/IEC 17025. It quantifies the caliper’s error and measurement uncertainty and confirms it performs within tolerance, with as-found and as-left data on the certificate.
How often should a caliper be calibrated?
Most quality systems calibrate a caliper every 12 months, or sooner after repair, overload, or before critical measurements. Set your interval from the manufacturer spec and your ISO 9001 / 13485 / AS9100 program and drift history.
Is Techmaster’s caliper calibration ISO 17025 accredited?
Yes. Techmaster Electronics is ISO/IEC 17025:2017 accredited by ANAB (Certificate AC-1736). Every caliper calibration is NIST-traceable and issued with a full measurement-uncertainty budget.
What is the turnaround for caliper calibration?
Standard turnaround is 5 business days, with 1–2 business-day expedite available. On-site calibration removes shipping time entirely for calipers that can’t leave the floor.
Do you calibrate calipers on-site or in-lab?
Both. Techmaster runs five US labs (Vista CA, Santa Clara CA, Orlando FL, San Antonio TX, Holly Springs NC) and offers nationwide on-site caliper calibration to minimize downtime.
