Surface Plate Calibration: Ensuring Accuracy in Every Measurement

Introduction

In precision manufacturing, accuracy is everything. Even the smallest deviation in measurement can lead to costly rework, product rejection, or compliance issues. At the heart of dimensional measurement lies the surface plate, a seemingly simple granite slab that serves as the foundation for countless quality checks. To maintain reliability, these plates must undergo regular surface plate calibration.

Flatness is one surface property; finish is another, see our guide to surface roughness tester calibration.

This calibration falls under our dimensional calibration service.

This article explains what a surface plate is, why calibration matters, what standards govern the process, and how companies can protect quality by working with accredited calibration service providers.

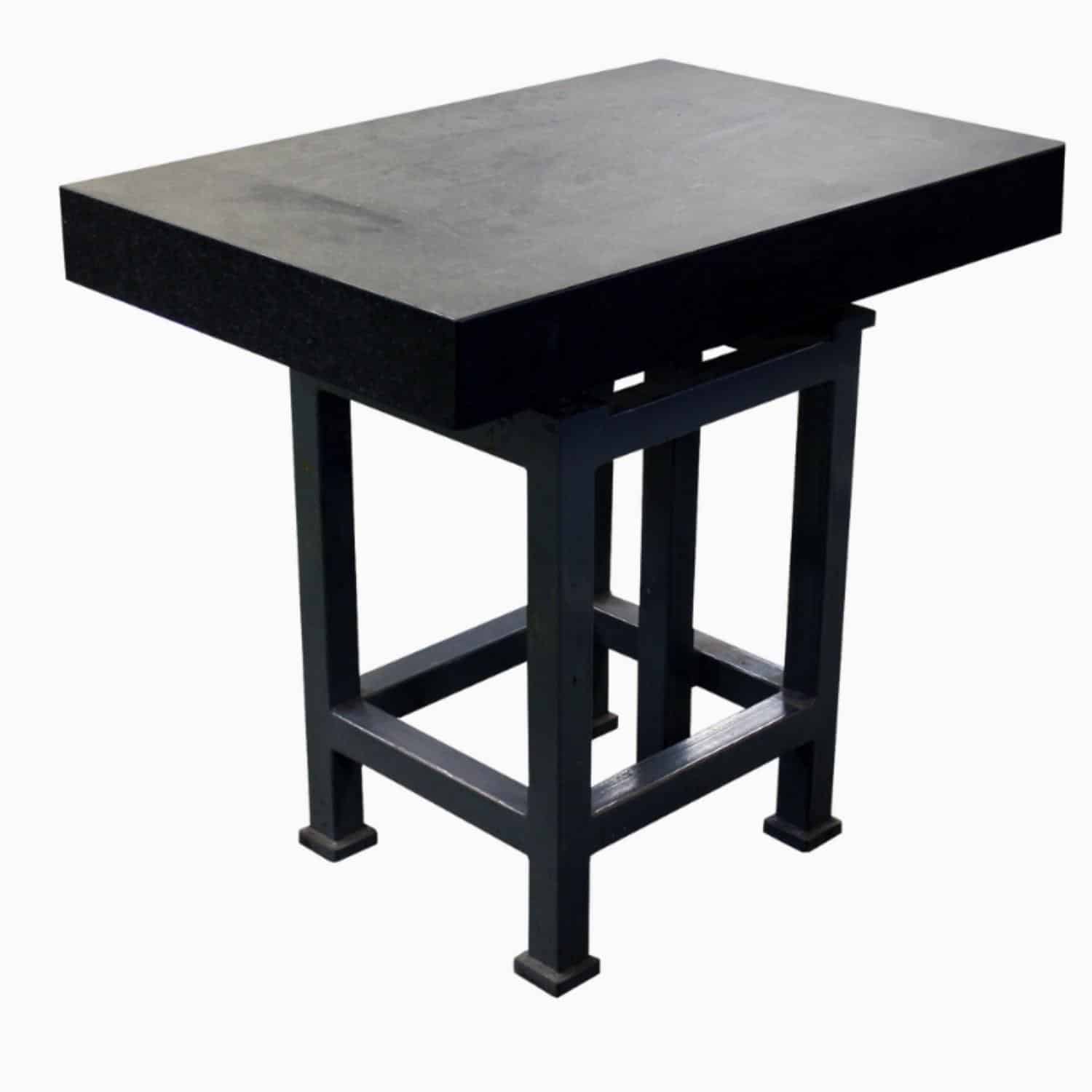

What is a Surface Plate?

A surface plate is a solid, flat reference plane used in metrology for precise inspection, marking, and layout. Typically made of granite or sometimes cast iron, surface plates provide a stable base against which instruments like micrometers, height gauges, and dial indicators can be checked.

Granite is the preferred material because it resists wear, does not rust, and maintains flatness over time. Surface plates come in various sizes and grades depending on the required accuracy, from small bench-top plates to massive plates installed in inspection labs or workshops.

Applications of Surface Plates

Different audiences rely on surface plates for different reasons:

• Engineers and Technicians – Use surface plates to calibrate hand tools and ensure day-to-day accuracy of measurements.

• QA Managers and Procurement Teams – Depend on certified surface plates to prove compliance during audits and maintain customer trust.

• Beginners or New Engineers – Learn to appreciate the importance of a flat reference plane as the starting point of precision measurement.

Without a properly calibrated surface plate, every measurement taken on it risks being inaccurate, compromising quality at its very foundation.

Why Surface Plate Calibration Matters

Over time, even granite wears down. Dust, chips, accidental impacts, and repeated use can slowly erode flatness. If left unchecked, this leads to:

• Incorrect measurements – A warped plate gives false readings, causing parts to be incorrectly approved or rejected.

• Production delays – Faulty measurements cascade into quality issues that halt production lines.

• Compliance risks – Auditors require proof that reference standards, including surface plates, are calibrated and traceable.

Standards for Surface Plate Calibration (U.S.)

Calibration of surface plates in the United States follows strict industry standards, ensuring results are both consistent and legally defensible. Key standards include:

• ASME B89.3.7 – Defines accuracy requirements and classification for granite surface plates.

• Federal Specification GGG-P-463c – Establishes performance standards for granite plates.

• ISO/IEC 17025 – Accreditation standard for calibration laboratories, ensuring competency and traceability.

• NIST Traceability – Links measurements back to the U.S. National Institute of Standards and Technology.

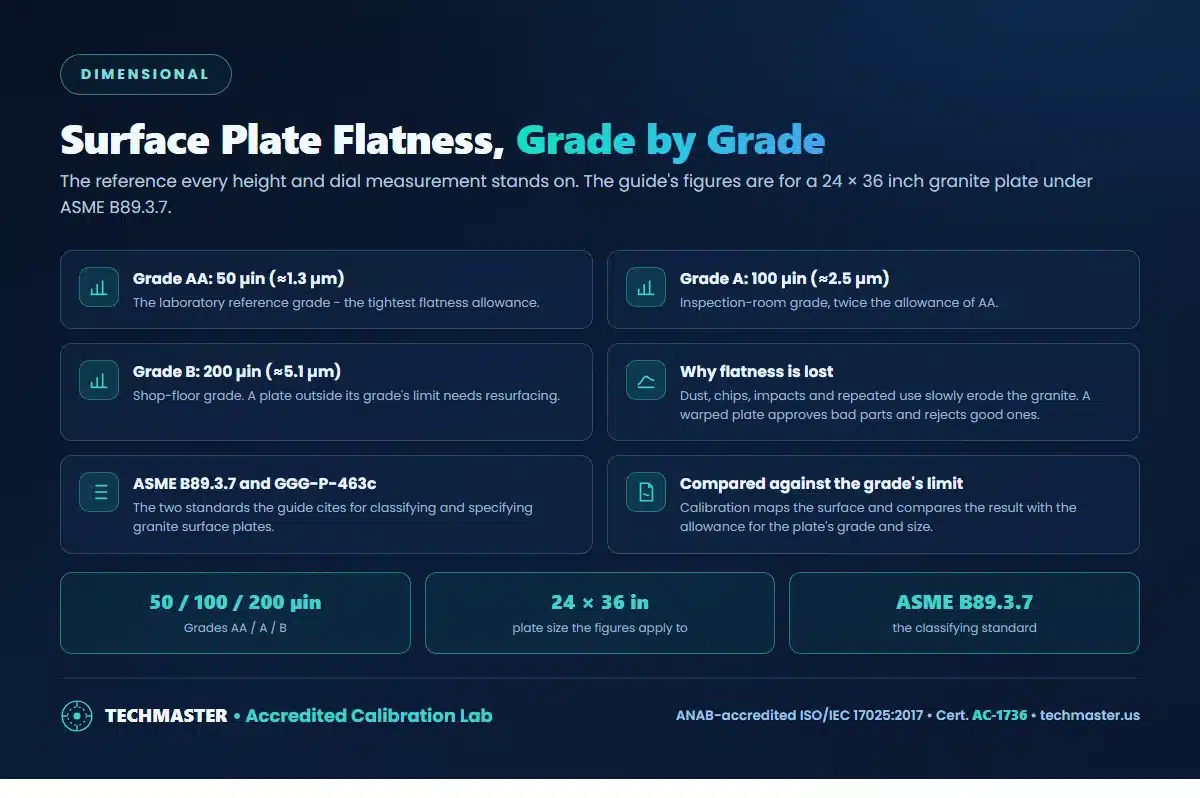

Surface plates are classified into Grades:

• AA (Laboratory Reference) – Highest accuracy, used for calibration labs.

• A (Inspection Room) – Common in QA environments.

• B (Workshop) – Suitable for shop-floor use, where tolerances are less strict.

Testing & Calibration Procedures

Surface plate calibration is more than a quick visual check. Accredited labs follow detailed procedures:

1. Visual inspection – Checking for cracks, chips, rust, or damage.

2. Repeat measurement test – Verifying consistency across multiple readings.

3. Autocollimator or electronic level mapping – Measuring flatness across the entire surface using optical or electronic instruments.

4. Flatness evaluation – Comparing results against allowable tolerances for the plate’s grade and size.

5. Certificate issuance – Providing documented proof of compliance with ASME and ISO standards.

Example: A 24×36 inch Grade B surface plate is allowed a maximum deviation of 200 µin (≈ 5.1 µm). If calibration shows deviations beyond this limit, the plate must be re-lapped (precision resurfacing) to restore accuracy.

Measurement Methods & Uncertainty in Calibration

Calibration of surface plates can be performed using different instruments, including:

• Electronic levels – Detect slope changes across the surface.

• Autocollimators – Optical devices used for high-precision angular measurement.

• Laser interferometers – Advanced systems that measure flatness to nanometer resolution.

• Repeat-o-meter tests – Identify localized wear or “hills and valleys” on the plate surface.

Every calibration has an uncertainty budget, which accounts for factors like instrument accuracy, environmental stability, and operator skill. Understanding this helps QA managers evaluate the reliability of results.

Maintenance & Care for Surface Plates

Even the best-calibrated plate will drift out of tolerance without proper care. Best practices include:

• Cleaning – Use non-abrasive cleaners and lint-free cloths; never use harsh chemicals.

• Load management – Avoid concentrated heavy loads; distribute weight evenly.

• Rotation – Periodically rotate the plate’s working direction to prevent uneven wear.

• Environmental control – Maintain stable temperature and humidity, avoid direct sunlight or drafts.

• Daily inspection – Wipe down before and after use to keep dust and oil from affecting measurements.

Common Causes of Flatness Deviation

Several factors accelerate the wear or distortion of surface plates:

• Improper support – Plates must rest on three-point supports positioned correctly; otherwise, bending or sagging occurs.

• Thermal gradients – Temperature differences between the top and bottom cause warping.

• Localized wear – Frequent use in one area leads to uneven flatness.

• Improper cleaning agents – Chemicals or abrasive pads can damage the surface.

When to Repair or Re-lap a Surface Plate

Calibration not only identifies out-of-tolerance plates but also indicates when resurfacing (re-lapping) is necessary. Indicators include:

• Measured deviation exceeds the grade tolerance.

• Visible scratches, chips, or cracks on the working surface.

• Repeat measurements show inconsistency across zones.

Re-lapping involves grinding the surface with specialized equipment to restore flatness, followed by re-certification.

Case Study: Surface Plate in a QA Lab

A mid-sized metal fabrication company relied on a 24×36 Grade B surface plate in its QA department. Over time, unnoticed wear led to flatness errors beyond specification.

• Problem: QA inspectors found inconsistent results between tools and rejected parts.

• Calibration result: Deviation exceeded Grade B tolerance, requiring re-lapping.

• Outcome: After resurfacing and recalibration, measurement errors dropped, and rejection rates improved by 25%.

Techmaster’s Surface Plate Calibration Services

Techmaster offers professional surface plate calibration services designed to support industries from aerospace to general manufacturing:

• Onsite service – No need to transport heavy granite plates.

• ISO/IEC 17025 accredited labs – Traceable to NIST standards.

• Expert technicians – Skilled in flatness mapping, re-lapping, and certification.

• Customer portal – Easy access to calibration certificates and schedules.

Whether you manage a workshop with multiple Grade B plates or a laboratory relying on Grade AA standards, Techmaster ensures your equipment meets the highest calibration requirements.

Conclusion & Call to Action

Surface plates may appear simple, but their role in measurement accuracy is foundational. Without regular surface plate calibration, all subsequent inspections and measurements are at risk.

Protect your quality, compliance, and reputation with accredited calibration services you can trust.

Don’t let worn plates compromise your quality, contact Techmaster now for accredited surface plate calibration services you can trust.
